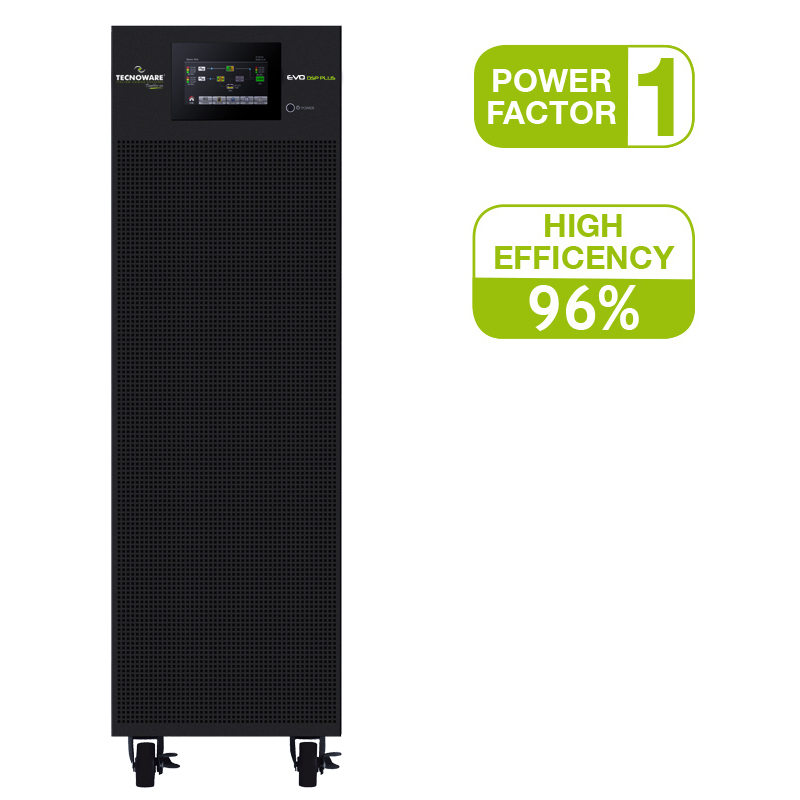

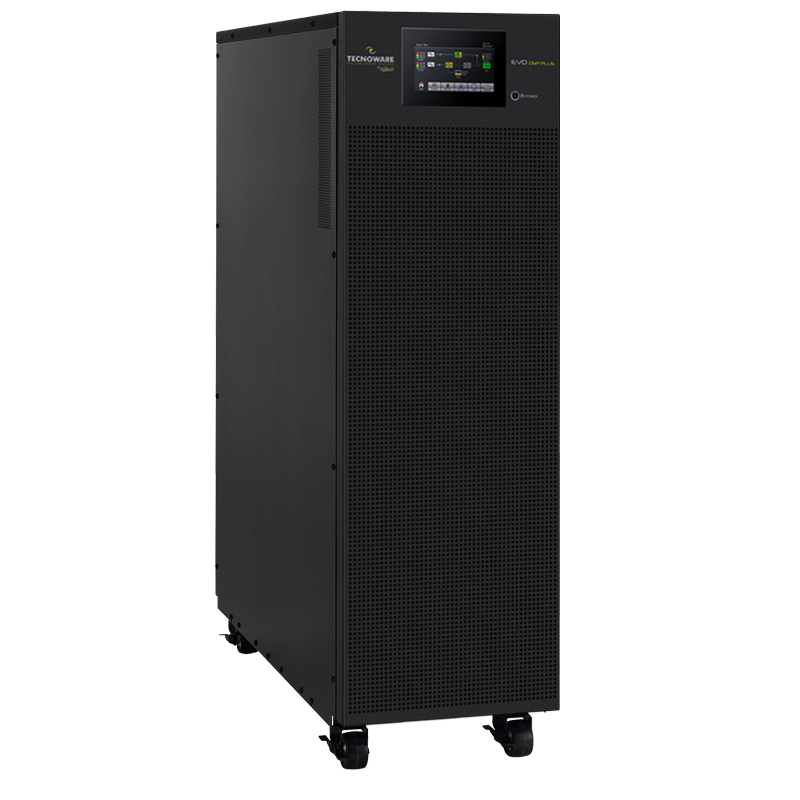

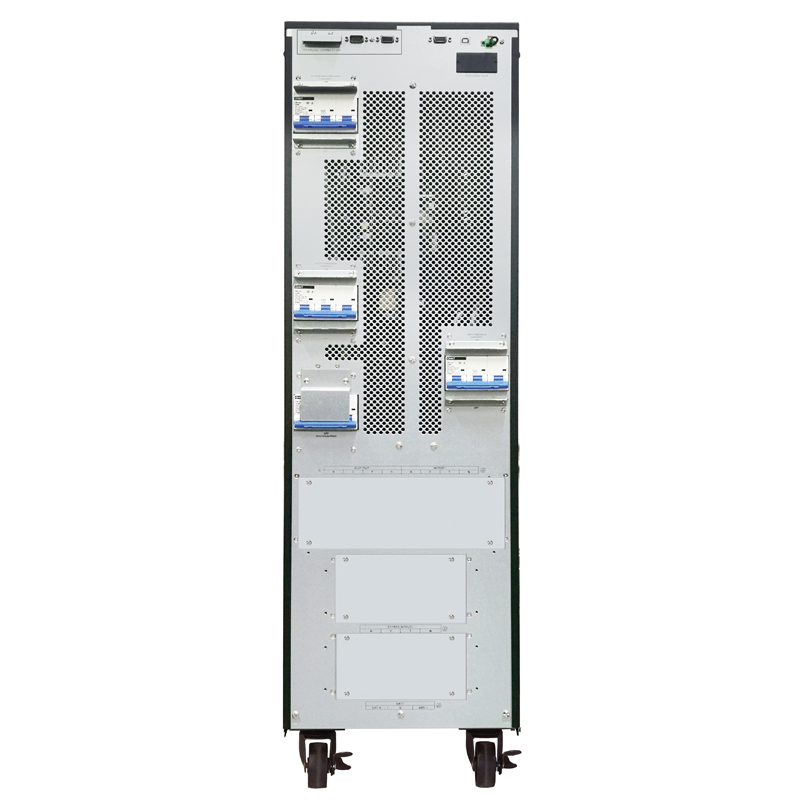

UPS EVO DSP PLUS 60.0 TT – PF 1

UPS EVO DSP PLUS TT 60.0 PF 1 – Power 60KVA. On Line Technology (VFI) DSP, 96% Efficiency, Three-phase Input / Output 400Vac, 50 / 60Hz, dimensions 30x100x81.5 cm, weight 100 Kg, ready to install extenal battery box (see the options)

UPS EVO DSP PLUS TT 60.0 – Power 60KVA PF 1. On Line Technology (VFI) DSP, 96% Efficiency, Input / Output 400Vac, 50 / 60Hz, dimensions 30x100x81.5 cm, weight 100 Kg,ready to install battery boxes (optional). Multifunction graphic LCD Touch display, static and manual bypass, Double input Rectifier/bypass EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Additional information
CodeFGCEDP60TT
Nominal Power60 KVA
Active Power60 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD30x100x81,5cm
Dimension (with packing) WxHxD43x123,5x95,3cm
Weight100 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input frequency range On-Line mode40Hz ~70Hz
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)<9% to 50% load, <6% to 100% load
Output
Number of phases3Ph+N
Nominal voltage360Vac/380Vac/400Vac/415Vac (Ph-N: 208Vac/220Vac/230Vac/240Vac)
Voltage THD at rated linear load<2% (linear load) - <5% (distorting load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3:2011
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Voltage THD<2% (linear load) - <4% (non-linear load)
Voltage regulation±1%
Overload capability (Battery mode)110% for 30 seconds, 130% for 10 seconds, >130% for 1 second
Overload capability (On-line mode)110% for 10 minutes, 130% for 1 minute, >130% for 1 second
Battery
TypeLead acid, sealed, maintenance free
Extended autonomySee page Battery Box
Installed inside-
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 60.0 TT – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP60TT
Nominal Power60 KVA
Active Power60 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD30x100x81,5cm
Dimension (with packing) WxHxD43x123,5x95,3cm
Weight100 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input frequency range On-Line mode40Hz ~70Hz
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)<9% to 50% load, <6% to 100% load
Output
Number of phases3Ph+N
Nominal voltage360Vac/380Vac/400Vac/415Vac (Ph-N: 208Vac/220Vac/230Vac/240Vac)
Voltage THD at rated linear load<2% (linear load) - <5% (distorting load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3:2011
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Voltage THD<2% (linear load) - <4% (non-linear load)
Voltage regulation±1%
Overload capability (Battery mode)110% for 30 seconds, 130% for 10 seconds, >130% for 1 second
Overload capability (On-line mode)110% for 10 minutes, 130% for 1 minute, >130% for 1 second
Battery
TypeLead acid, sealed, maintenance free
Extended autonomySee page Battery Box
Installed inside-
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
