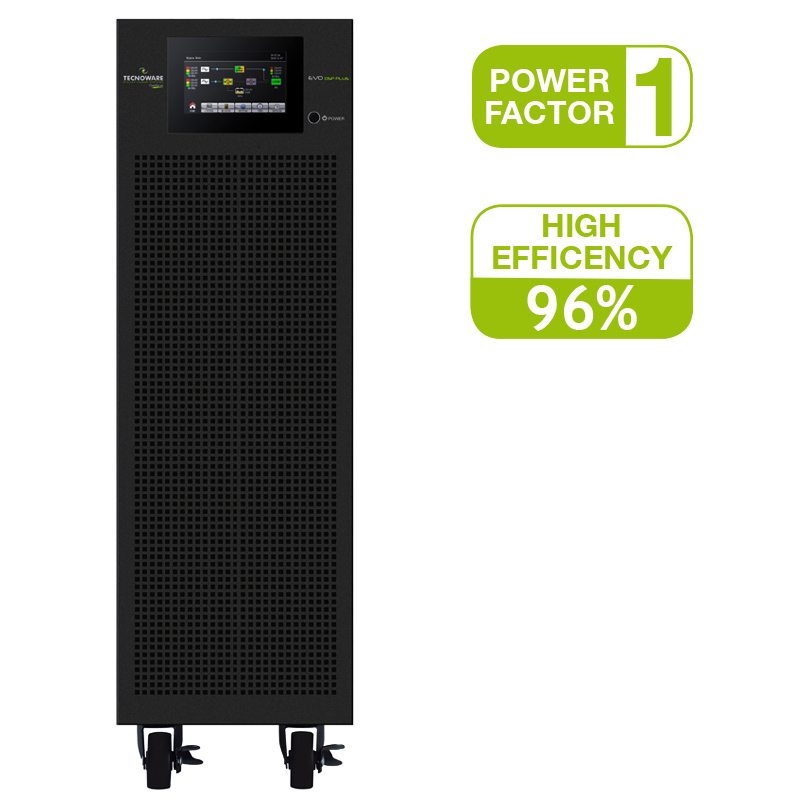

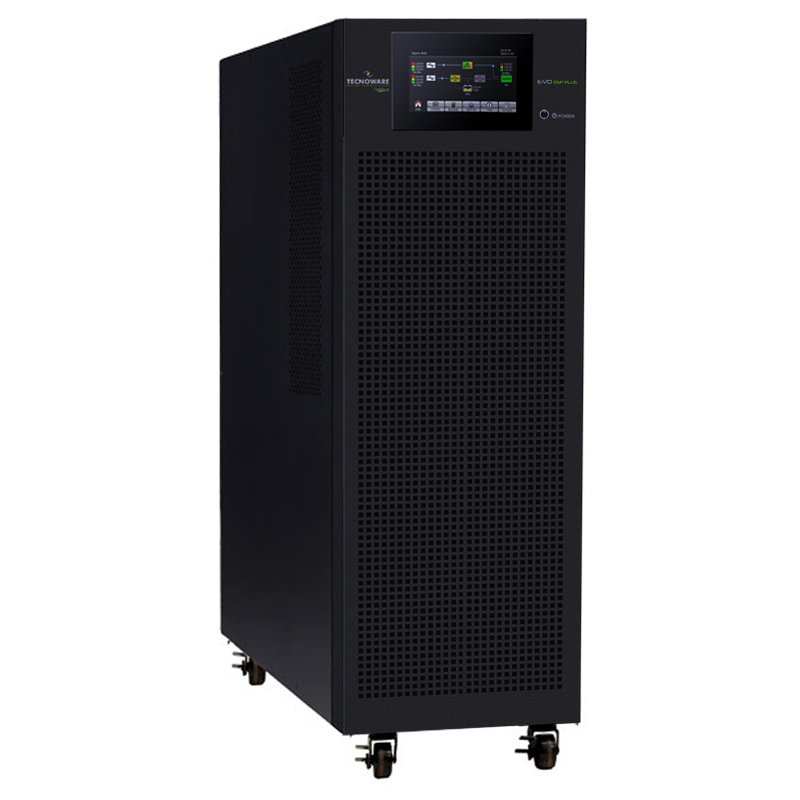

UPS EVO DSP PLUS 10.0 TT – PF 1

UPS EVO DSP PLUS TT 10.0 – Power 10KVA PF 1. On Line Technology (VFI) DSP, 96% Efficiency, Input / Output 400Vac, 50 / 60Hz, dimensions 25×82,6×63 cm, weight 70 Kg,ready to install 20x 7,2-9-11Ah internal batteries or battery boxes (optional). Multifunction graphic LCD Touch display, static and manual bypass, Double input Rectifier/bypass EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

UPS EVO DSP PLUS TT 10.0 PF 1 – Power 10KVA. On Line Technology (VFI) DSP, 96% Efficiency, Three-phase Input / Output 400Vac, 50 / 60Hz, dimensions 25×82,6×63 cm, weight 70 Kg, ready to install 20x 12V 7,2-9-11Ah internal batteries or extenal battery box (see the options).

Additional information
CodeFGCEDP10TT
Nominal Power10 KVA
Active Power10 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD25x82,6x63 cm
Dimension (with packing) WxHxD38,5x102,5x73,5 cm
Weight70 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)=4%
Output
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage360Vac/380Vac/400Vac/415Vac (Ph-N: 208Vac/220Vac/230Vac/240Vac)
Voltage THD at rated linear load<2% (linear load) - <5% (distorting load)
Crest factor3:1
Frequency50/60 Hz
Efficiency96%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Overload capability (Battery mode)110% for 60 minutes, 130% for 10 minutes, >150% for 1 second
Overload capability (On-line mode)110% for 60 minutes, 130% for 10 minutes, >150% for 1 second
Battery
TypeLead acid, sealed, maintenance free
Extended autonomySee page Battery Box
Installed inside-
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C, for longer battery life)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 10.0 TT – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP10TT
Nominal Power10 KVA
Active Power10 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD25x82,6x63 cm
Dimension (with packing) WxHxD38,5x102,5x73,5 cm
Weight70 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)=4%
Output
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage360Vac/380Vac/400Vac/415Vac (Ph-N: 208Vac/220Vac/230Vac/240Vac)
Voltage THD at rated linear load<2% (linear load) - <5% (distorting load)
Crest factor3:1
Frequency50/60 Hz
Efficiency96%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Overload capability (Battery mode)110% for 60 minutes, 130% for 10 minutes, >150% for 1 second
Overload capability (On-line mode)110% for 60 minutes, 130% for 10 minutes, >150% for 1 second
Battery
TypeLead acid, sealed, maintenance free
Extended autonomySee page Battery Box
Installed inside-
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C, for longer battery life)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Produits similaires

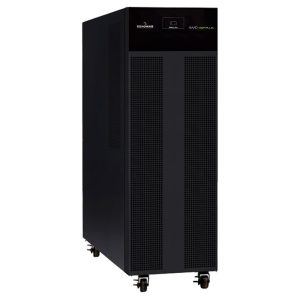

  • BATTERY BOX FOR EVO DSP PLUS 6-10KVA
