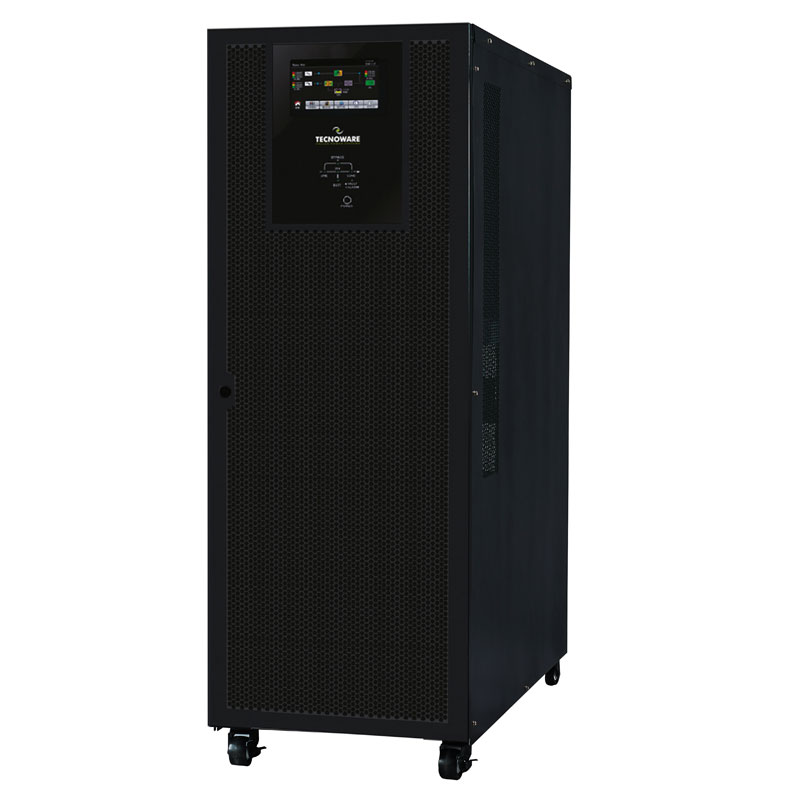

UPS EVO DSP PLUS 120.0 TT – PF 1

EVO DSP PLUS TT 120.0 PF 1 – Power 120KVA. On Line Technology (VFI) DSP with Modular structure, Efficiency 96%, Three-phase input / output 400Vac, 50 / 60Hz, dimensions 43x120x100 cm, weight 200 Kg, does not include batteries,ready to install additional battery boxes.

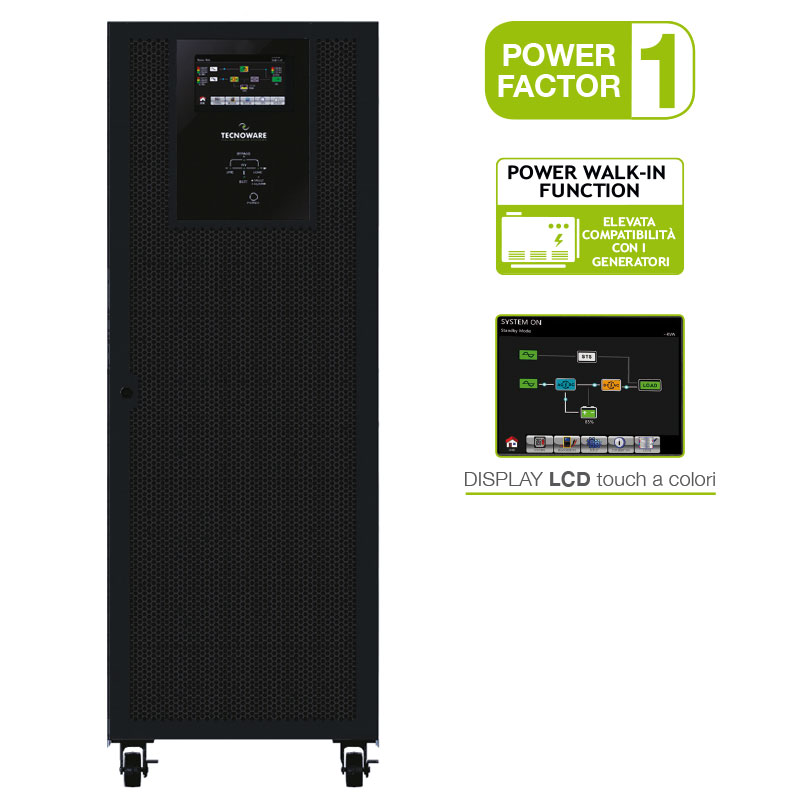

UPS EVO DSP PLUS TT 120.0 – Power 120 KVA PF 1. On Line Technology (VFI) DSP with Modular structure, Efficiency 96%, Input / Output 400Vac, 50 / 60Hz, dimensions 43x120x100 cm, weight 200 Kg,Easy internal modules Swap with redundant function, Power Walk-in when starting the rectifier, does not include batteries, extension bacup time through additional battery boxes. 10 “LCD display Multi-function graphic touch, static and manual bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP card, Dry Contact or MODBUS (optional).

Additional information
CodeFGCEDP120
Nominal Power120 KVA
Active Power120 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD43x120x100 cm
Dimension (with packing) WxHxD70,5x140x112,5 cm
Weight200 Kg
Input
Nominal Voltage380Vac/400Vac/415 Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Input power factor0,99
Input current harmonic distortion (THDi)=4%
Output
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage380Vac/400Vac/415 Vac
Voltage THD at rated linear load<2% (linear load) - <4% (non-linear load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3
Frequency stability±0,1 Hz
Voltage regulation±1%
Overload<= 110% for hour, 111% ~ 125% for 10 minutes,126%~150% for 1 minute, >150% for 200 ms
Battery
TypeLead acid, sealed, maintenance free
Installed insideSee page Battery Box
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 120.0 TT – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP120
Nominal Power120 KVA
Active Power120 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD43x120x100 cm
Dimension (with packing) WxHxD70,5x140x112,5 cm
Weight200 Kg
Input
Nominal Voltage380Vac/400Vac/415 Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Input power factor0,99
Input current harmonic distortion (THDi)=4%
Output
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage380Vac/400Vac/415 Vac
Voltage THD at rated linear load<2% (linear load) - <4% (non-linear load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3
Frequency stability±0,1 Hz
Voltage regulation±1%
Overload<= 110% for hour, 111% ~ 125% for 10 minutes,126%~150% for 1 minute, >150% for 200 ms
Battery
TypeLead acid, sealed, maintenance free
Installed insideSee page Battery Box
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
