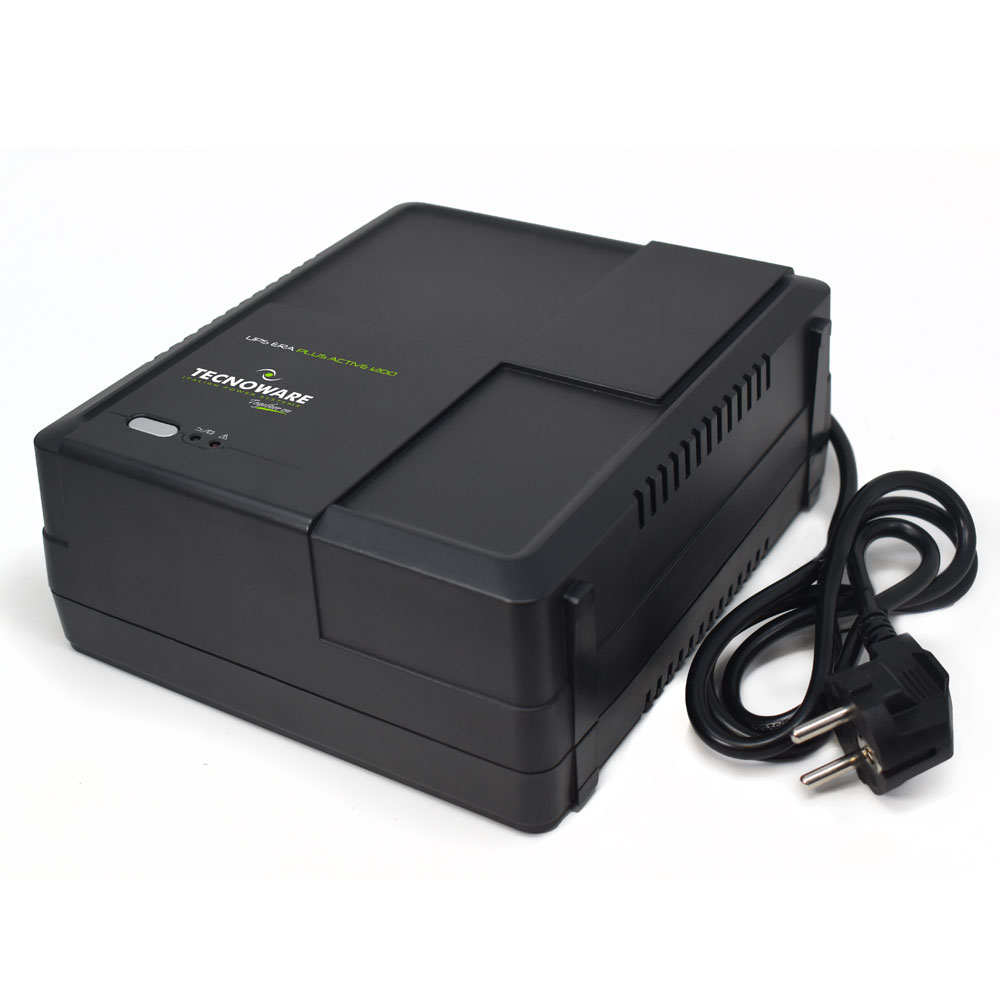

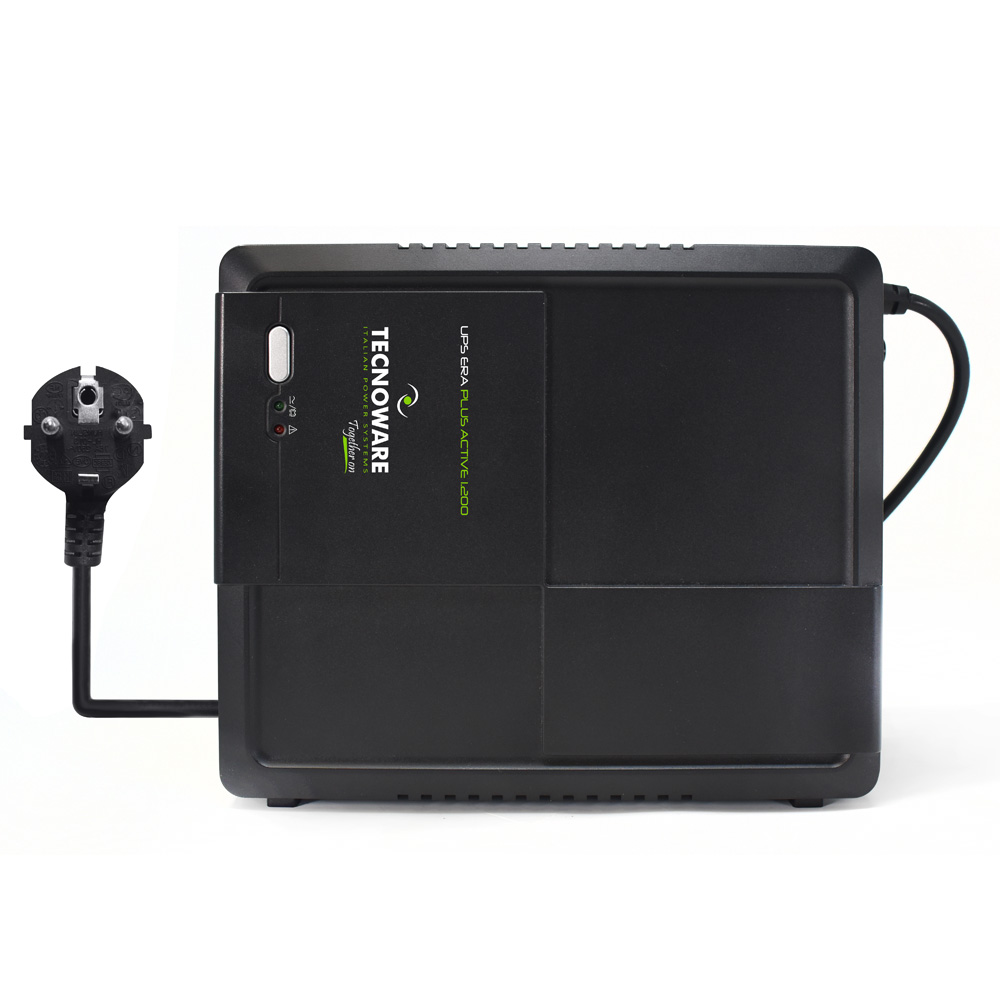

UPS ERA PLUS ACTIVE 1200-1600 TOGETHER ON

UPS ERA PLUS ACTIVE 1200-1600 Uninterruptible Power Supply – Together ON, Schuko outputs, Runtime up to 40 min, AVR stabilization.

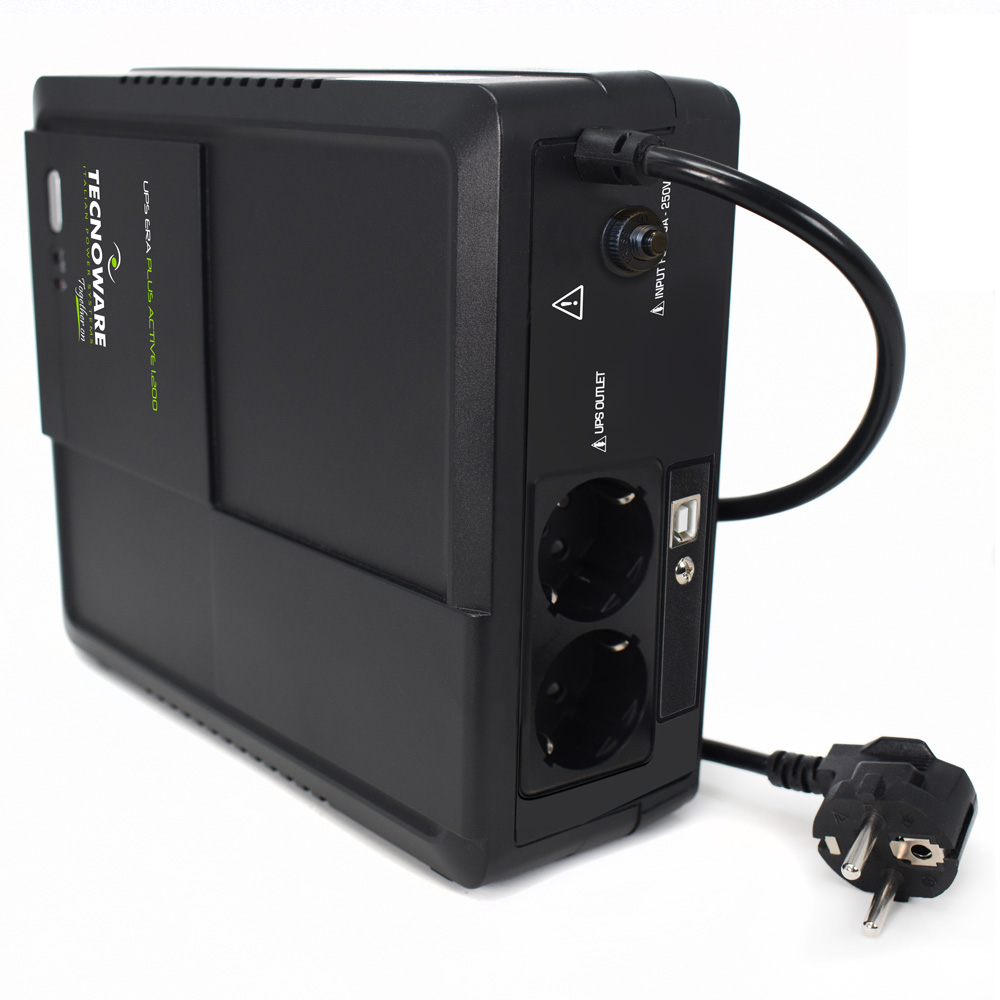

UPS ERA PLUS ACTIVE 1200-1600 UPS, 12V 9Ah battery, It has 1 SCHUKO fixed input cable and 2 SCHUKO outputs protected from Black-Out, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 20.7×8.2×22.8 cm, weight 2.7 kg. Equipped with On-Off button with integrated multifunction LED with sound alarm for signaling the operating status and USB interface for UPS control and on/off programming through the free Tecnomanager Win/Mac software. Designed to protect devices equipped with an Active PFC power supply such as Personal Computers, Game Consoles, Local Area Networks (LANs) and Surveillance Systems. Totally silent.

Reviews

There are no reviews yet.

Be the first to review “UPS ERA PLUS ACTIVE 1200-1600 TOGETHER ON”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique

CodeFGCERAPLAT1202SCH
TechnologyLine Interactive with stabilizer compatible with Active PFC
CoolingNatural
Audible Noise< 40 dBA to 1 m
Dimension (UPS) WxHxD20,7x8,2x22,8 cm
Dimension (with packing) WxHxD28x12x28,8 cm
Weight2,7 Kg
Max Computer Power1200VA/840W
InterfaceUSB Port
Input
Nominal VoltageSingle-phase 230Vac
Input Voltage Range+20%/-25%
Nominal Frequency50/60 Hz (automatic selection)
Number of phases1Ph+N
Input frequency range+/-5%
Output
Overload Capability< 130 %
Number of phases1Ph+N
Nominal voltageSingle-phase 230Vac
Frequency50/60 Hz (automatic selection)
Inverter waveformModified sinewave
Voltage regulation (Line mode)AVR (Automatic Voltage Regulation)
Voltage regulation (Battery mode)+/-5%
Battery
TypeLead acid, sealed, maintenance free
Backup time (Typical)10-40 min
Environmental specification
Working TemperatureFrom 0 to 55 °C (reccomended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
×
