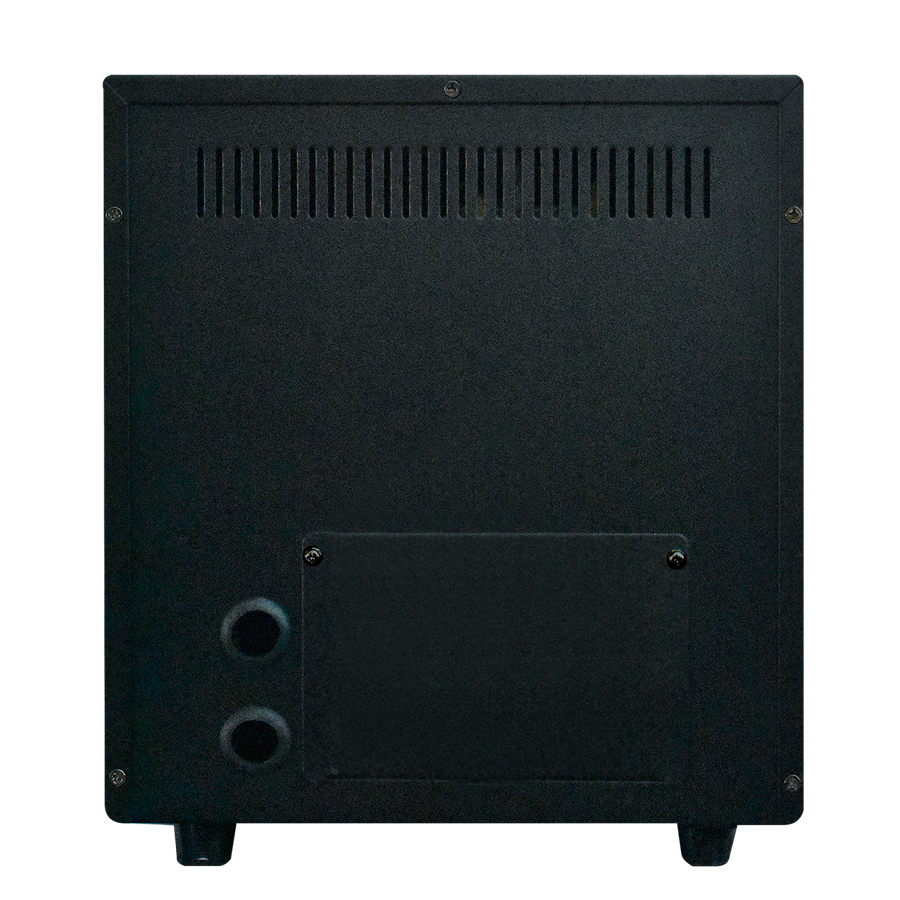

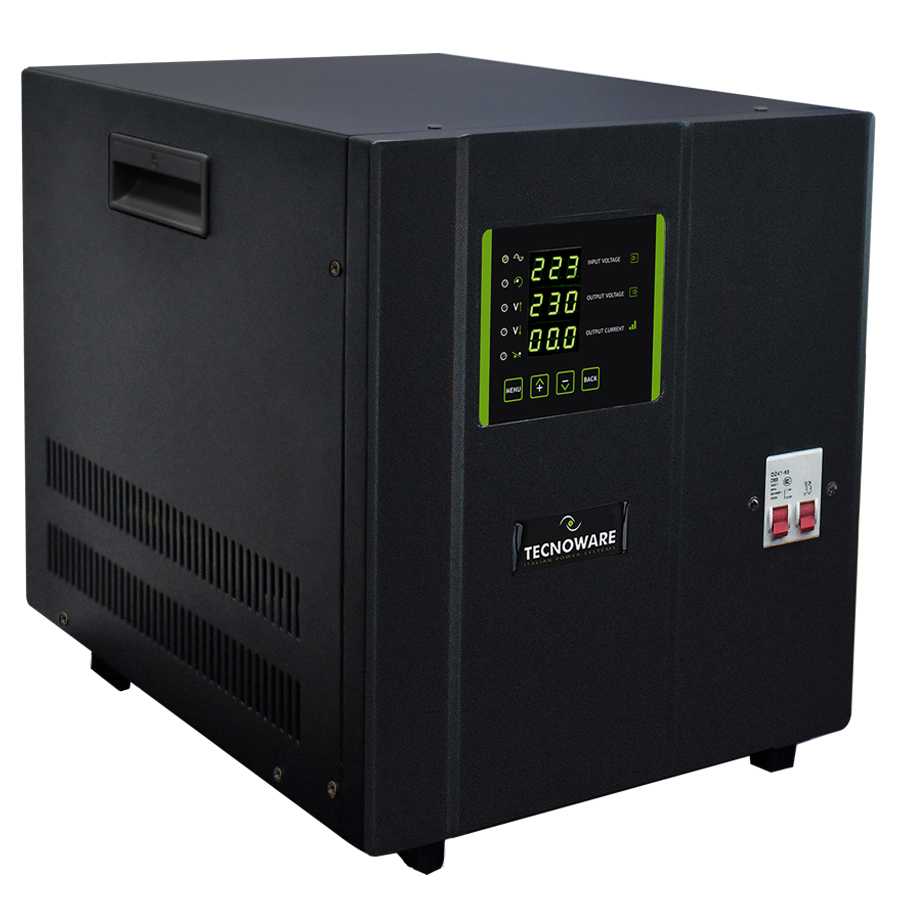

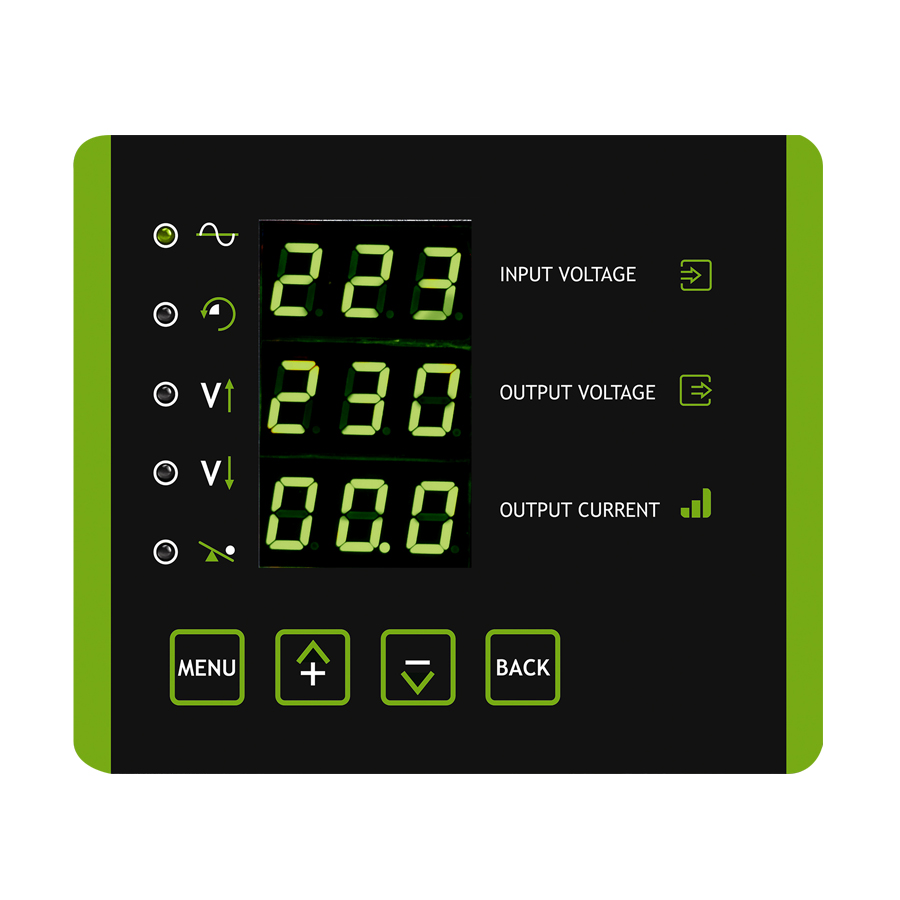

SINGLE-PHASE 4,5KVA SERVO-ASSISTED STABILIZER WITH ELECTRONIC CONTROL WITH MICROPROCESSOR

Stabilizer, single-phase version, 4.5KVA power, with high stabilization precision (1% output) in sinusoidal wave form, insensitivity to load and power factor. It does not introduce harmonic distortions, weight 20 kg, dimensions 24,3x28x34,3 cm.

Reviews

There are no reviews yet.

Be the first to review “SINGLE-PHASE 4,5KVA SERVO-ASSISTED STABILIZER WITH ELECTRONIC CONTROL WITH MICROPROCESSOR”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFSTESM4K5M
Nominal Power4.5 KVA
Active Power3,6 KW
Power Factor0,8
TechnologyServo-Assisted with Microprocessor Electronic Control
Dimension (with packing) WxHxD36x50x50 cm
Weight20 Kg
Dimension WxHxD24,3x28x34,3 cm
Input
Nominal Voltage220/230/240Vac (selectable)
Input Voltage Range160Vac-270Vac
Nominal Frequency50/60 Hz
Number of phases1Ph+N
Output
Number of phases1Ph+N
Nominal voltage220/230/240Vac (selectable)
Voltage stability±1%
Voltage regulation12 mSec/Volt
Performance>97%
Load variationFrom 0% to 100%
Overload1,5
Nominal frequency50/60 Hz
Battery
Environmental specification
Working TemperatureFrom 0 to 55 °C
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE
