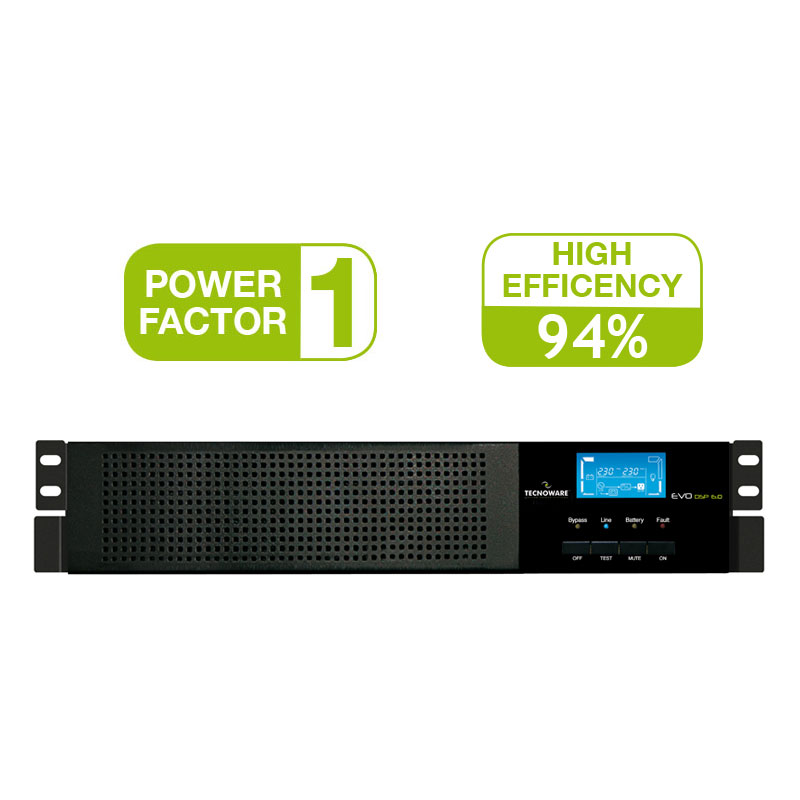

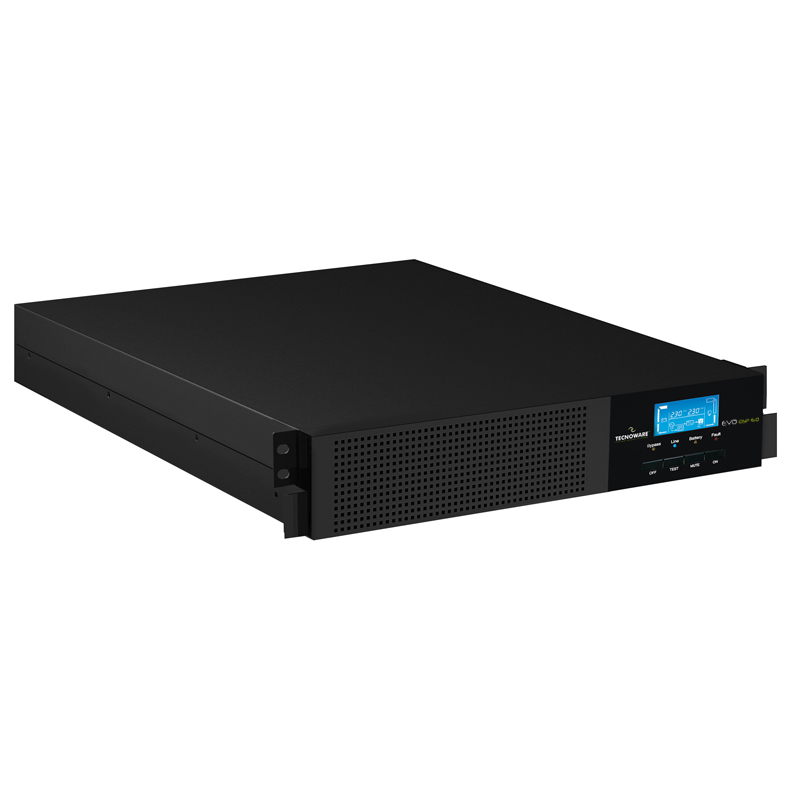

UPS EVO DSP PLUS RACK MOUNT 6.0 – PF 1

UPS EVO DSP PLUS RACK MOUNT 6.0 PF 1 – Power 6KVA. On Line Technology (VFI) DSP, 94% Efficiency, Input / output 230 / 230Vac 50 / 60Hz, dimensions 43.8×8.8×50 cm (2U), weight 15 Kg, without batteries (it is necessary to add an external battery box).

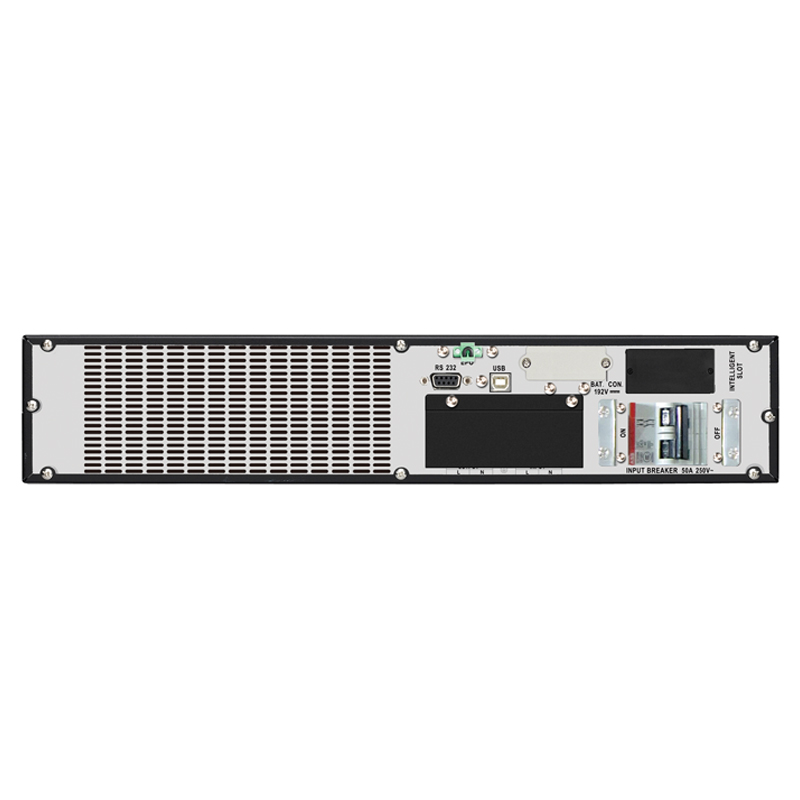

UPS EVO DSP PLUS RACK MOUNT 6.0 – Power 6 KVA PF 1. On Line Technology (VFI) DSP, 94% Efficiency, Input / output 230 / 230Vac 50 / 60Hz, dimensions 43.8×8.8×50 cm (2 Rack units), weight 15 Kg, does not include batteries, for bacup time add external battery boxes. Multifunction graphic LCD display, static bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS RACK MOUNT 6.0 – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP6MMRM/00
Nominal Power6 KVA
Active Power6 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Audible Noise< 48 dBA to 1 m
Dimension (UPS) WxHxD43,8x8,8x50 cm (2U)
Dimension (with packing) WxHxD59x22x71 cm
Weight15 Kg
Equipped With1 serial cable, Tecnomanager software and 2 metal handle for 19’’ Rack cabinet mounting
Input
Nominal Voltage208Vac/220Vac/230Vac/240Vac
Input Voltage Range176Vac-300Vac from 50% to 100% load, 110Vac-300Vac from to 50% load
Nominal Frequency50/60 Hz (selectable)
Number of phases1Ph+N
Input power factor0,99
Output
Transfer time0 ms (On-Line)
Number of phases1Ph+N
Nominal voltage208Vac/220Vac/230Vac/240Vac
Static voltage Regulation at %100 linear load (On-Line and battery mode)±1%
Crest factor3:1
Frequency50/60 Hz (selectable)
Inverter waveformSinewave
Efficiency94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Frequency stability±0,1 Hz
Voltage THD<3% (linear load), <6% (non-linear load)
Overload capability (Battery mode)110% for 30 seconds, 130% for 10 seconds, >130% for 1 second
Overload capability (On-line mode)110% for 10 minutes, 130% for 1 minute, >130% for 1 second
Battery
Extended autonomyExternal Battery Box (optional)
Batteries number16 (inside the external Battery Box, for UPS operation)
Battery charge time (typical)6-8 hours
Environmental specification
Working TemperatureDa 0 a 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
