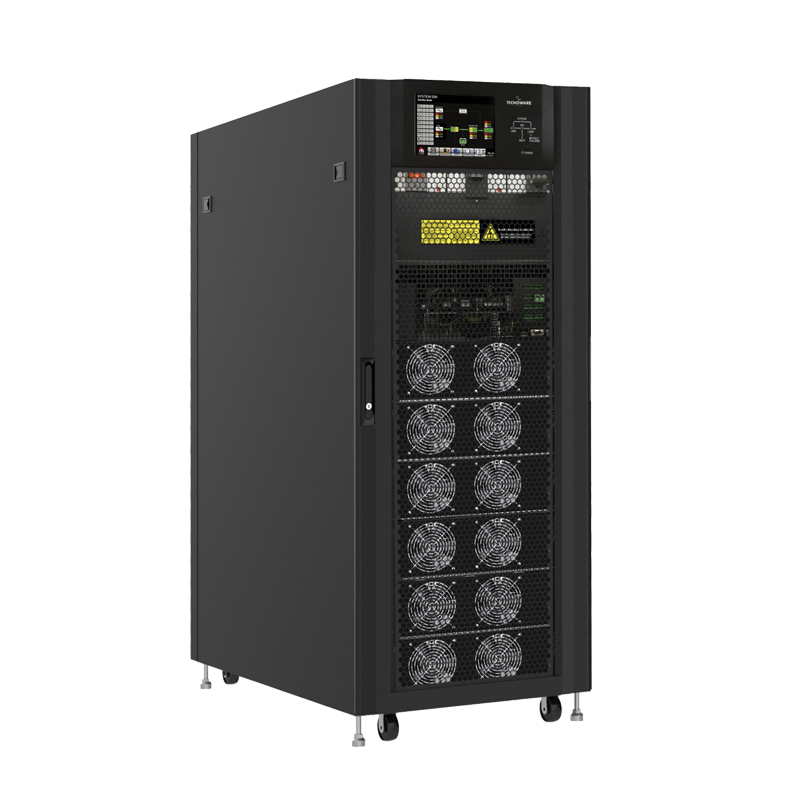

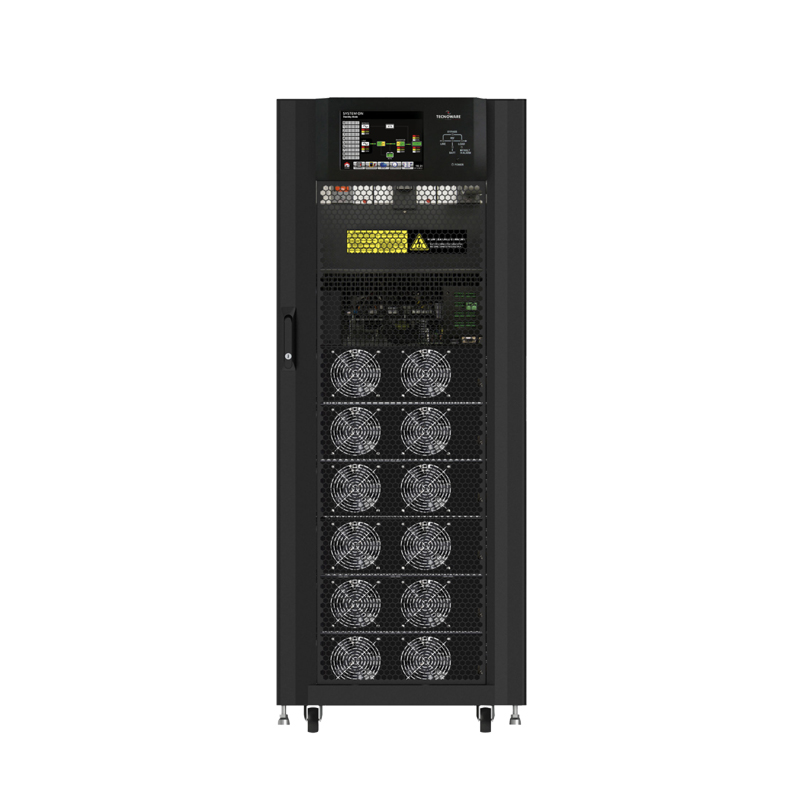

CABINET EVO DSP PLUS MODULAR 30U, STS 120KVA UP TO 6 UPS MODULES 20KVA

UPS cabinet EVO DSP PLUS MODULAR 30U able to contain up to 6 UPS modules of 20KVA, maximum installable power 120KVA, Dimensions 60×110 cm with height 147.5cm weight 230.5Kg.
Téléchargez la fiche technique

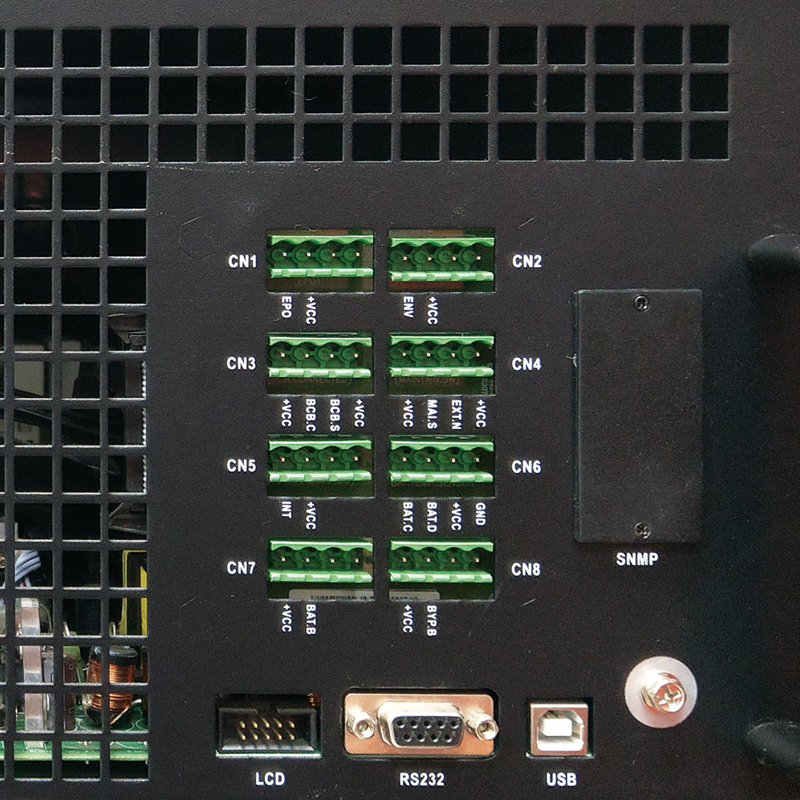

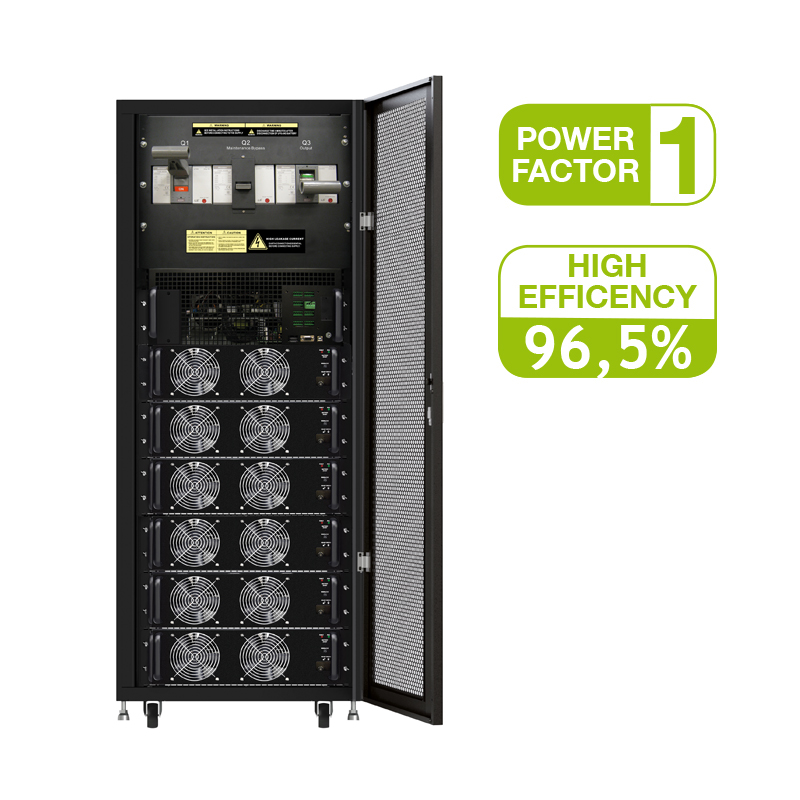

Cabinet UPS EVO DSP MODULAR HE 30U able to contain up to 6 UPS modules 20KVA TT (to be ordered separately) equipped with 120KVA static bypass (STS), manual bypass switch, connections and disconnectors input / output, connection and disconnector for external batteries, 10 “LCD touch screen display, RS-232 communication ports, USB, EPO and intelligent slot for installing the SNMP, RS485 or dry contact card, TecnoManager software (downloadable for free from www.tecnoware.com) Closure with front grill door and rear door, removable side panels Dimensions 60×110 cm with height 147.5cm weight 230.5Kg.

Reviews

There are no reviews yet.

Be the first to review “CABINET EVO DSP PLUS MODULAR 30U, STS 120KVA UP TO 6 UPS MODULES 20KVA”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
Input
Output
Battery
Environmental specification

Produits similaires

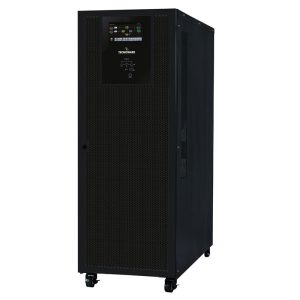

  • UPS EVO DSP PLUS 120.0 TT – PF 1
