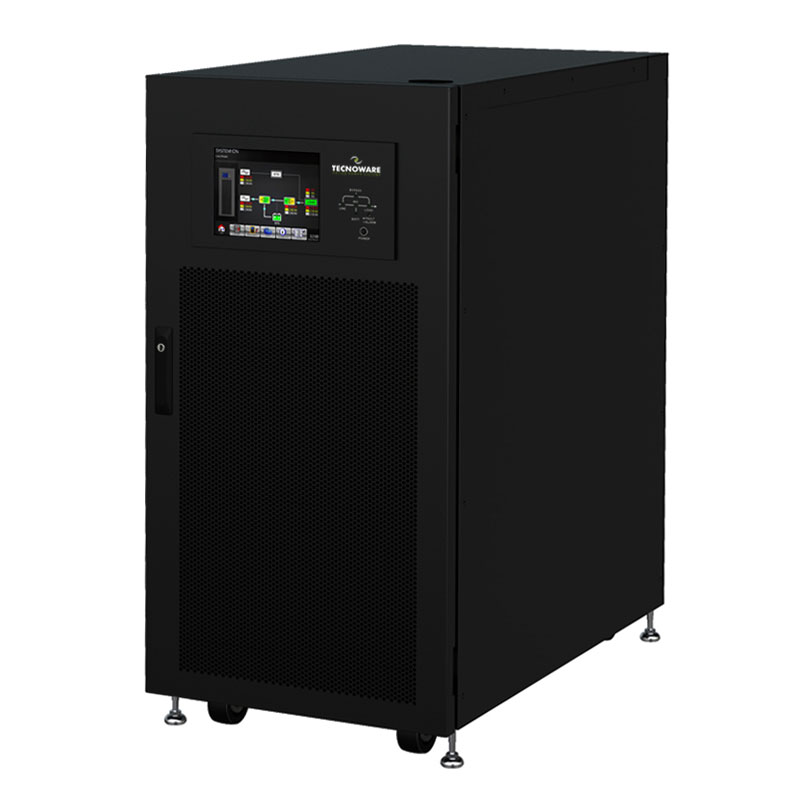

UPS EVO DSP PLUS 200.0 TT – PF 1

UPS EVO DSP PLUS TT 200.0 PF 1 – Power 200KVA. On Line Technology (VFI) DSP with Modular structure, Efficiency 96%, Three-phase Input / Output 400Vac, 50 / 60Hz, dimensions 60x120x100 cm, weight 265 Kg, does not contain batteries, prepared for the installation of additional battery boxes.

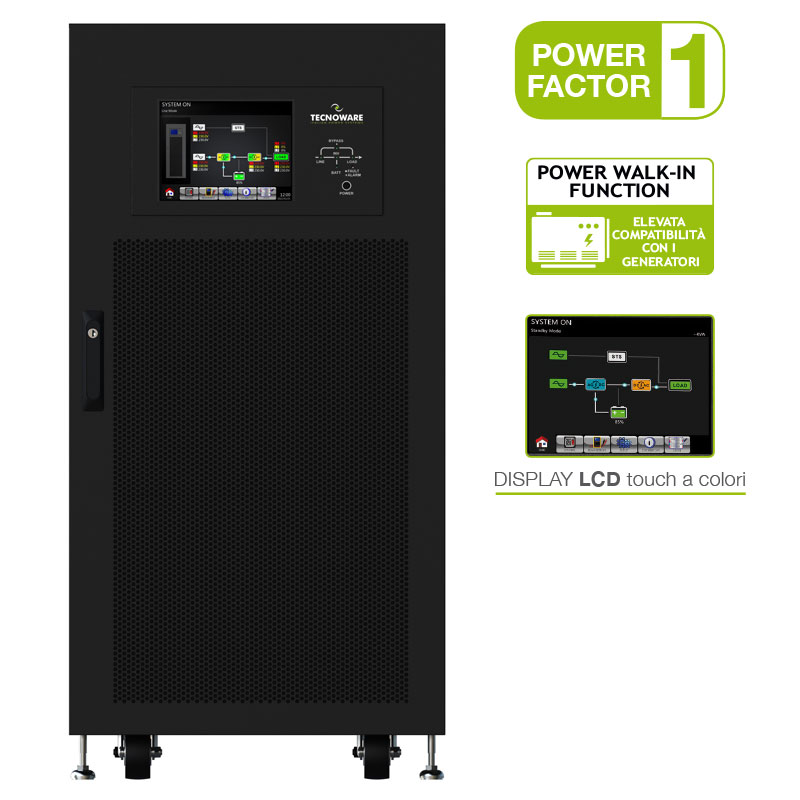

UPS EVO DSP PLUS TT 200.0 – Power 200 KVA PF 1. On Line Technology (VFI) DSP with Modular structure, Efficiency 96%, Input / Output 400Vac, 50 / 60Hz, dimensions 60x120x100 cm, weight 265 Kg, Easy internal modules Swap with redundant function, Power Walk-in when starting the rectifier, does not contain batteries , autonomy extension through additional battery boxes. 10″ LCD display Multifunction graphic touch, static and manual bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Additional information
CodeFGCEDP200TT
Nominal Power200 KVA
Active Power200 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD60x120x100 cm
Dimension (with packing) WxHxD70,5x140x112,5cm
Weight265 Kg
Input
Nominal Voltage380Vac/400Vac/415 Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input current harmonic distortion (THDi)=4%
Output
Overload Capability<= 110% for hour, 111% ~ 125% for 10 minutes,126%~150% for 1 minute, >150% for 200 ms
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage380Vac/400Vac/415 Vac
Voltage THD at rated linear load<2% (linear load) - <4% (non-linear load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Battery
TypeLead acid, sealed, maintenance free
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 200.0 TT – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP200TT
Nominal Power200 KVA
Active Power200 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD60x120x100 cm
Dimension (with packing) WxHxD70,5x140x112,5cm
Weight265 Kg
Input
Nominal Voltage380Vac/400Vac/415 Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input current harmonic distortion (THDi)=4%
Output
Overload Capability<= 110% for hour, 111% ~ 125% for 10 minutes,126%~150% for 1 minute, >150% for 200 ms
Transfer time0 ms (On-Line)
Number of phases3Ph+N
Nominal voltage380Vac/400Vac/415 Vac
Voltage THD at rated linear load<2% (linear load) - <4% (non-linear load)
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency96%, calculated in double conversion mode at 100% load according to standard 62040-3
Voltage regulation (Battery mode)±1%
Frequency stability±0,1 Hz
Battery
TypeLead acid, sealed, maintenance free
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
