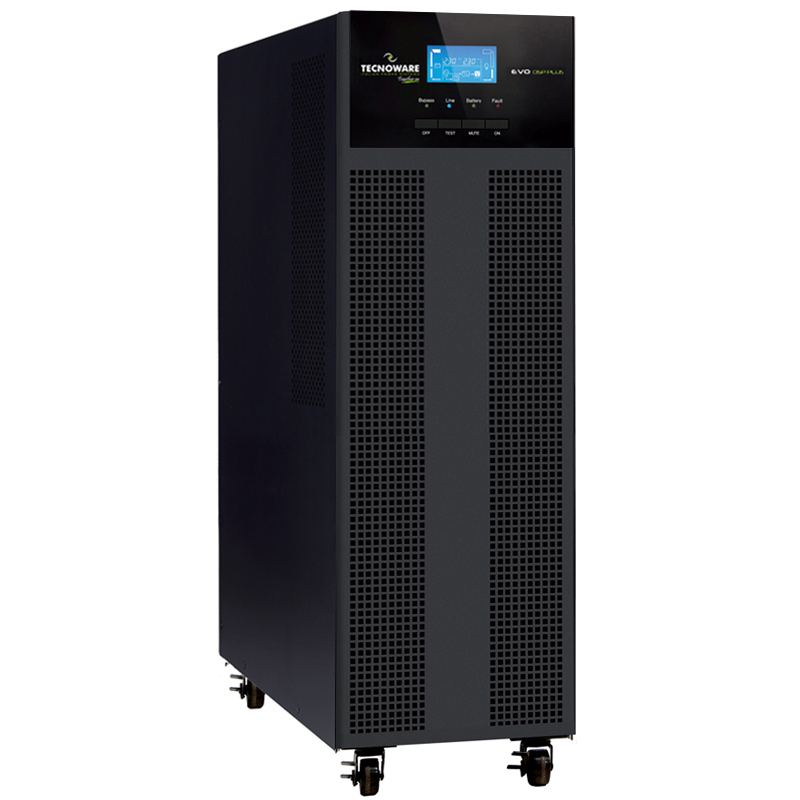

UPS EVO DSP PLUS 10.0 – PF 1

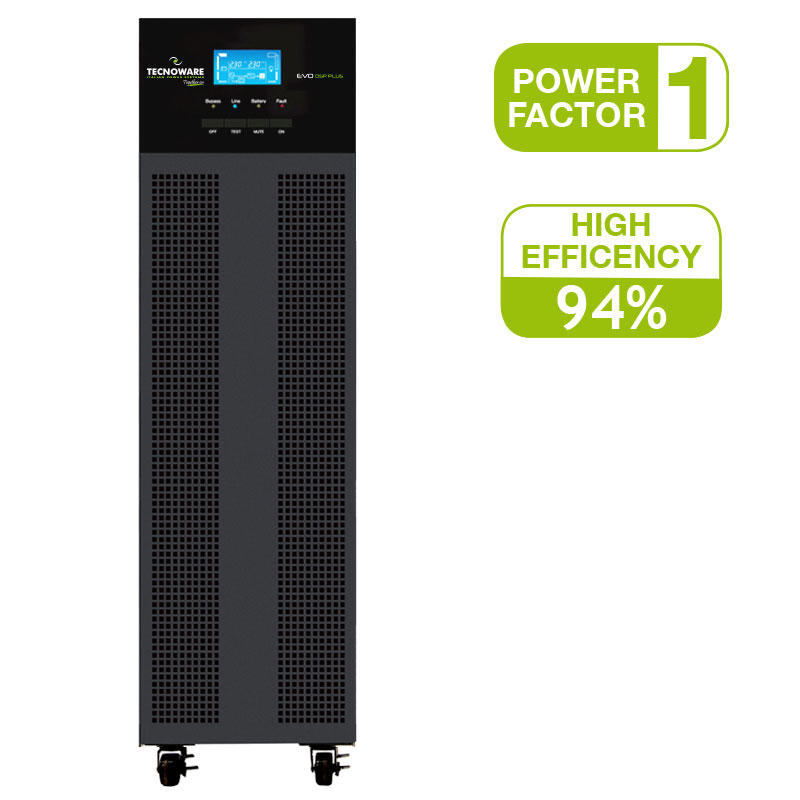

UPS EVO DSP PLUS 10.0 PF 1 – Power 10KVA. On Line Technology (VFI) DSP, 94% Efficiency, Input / output 230 / 230Vac 50 / 60Hz, dimensions 19×68.8×44.2 cm, weight 23 Kg,ready to install 16 12V 7-9-11Ah batteries.

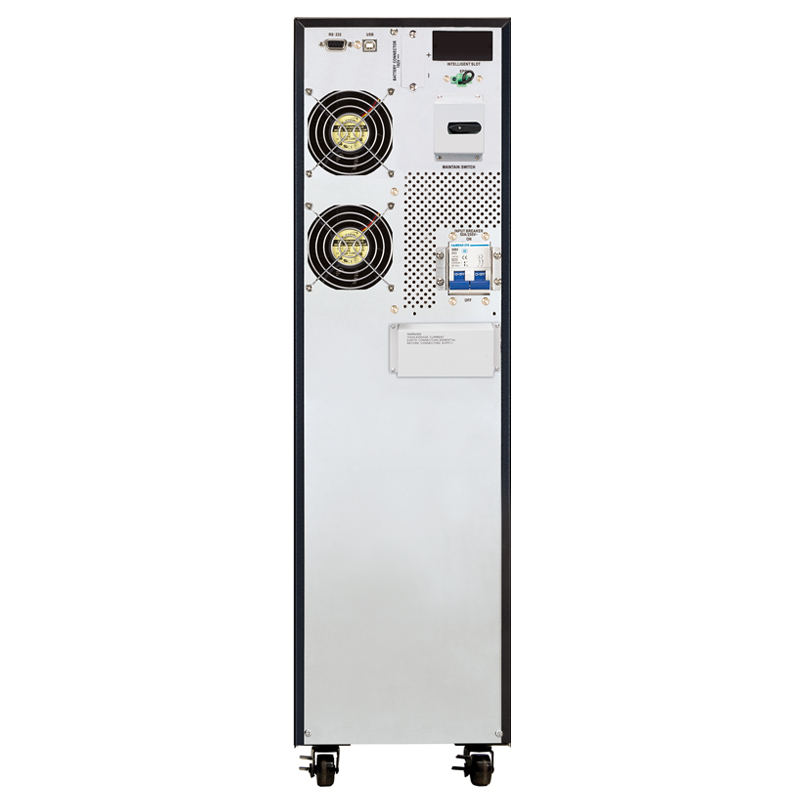

UPS EVO DSP PLUS 10.0 – Power 10 KVA PF 1. On Line Technology (VFI) DSP, 94% Efficiency, Input / output 230 / 230Vac 50 / 60Hz, dimensions 19×68.8×44.2 cm, weight 23 Kg,ready to install 16 7.2-9-11ah batteries, extension bacup time through additional battery boxes (optional). Multifunction graphic LCD display, static and manual bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 10.0 – PF 1”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEDP10MM/00
Nominal Power10 KVA
Active Power10 KW
Power Factor1
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Audible Noise< 58 dBA to 1 m
Dimension (UPS) WxHxD19x68,8x44,2 cm
Dimension (with packing) WxHxD32x92,2x58,7 cm
Weight23 Kg
Input
Nominal Voltage208Vac/220Vac/230Vac/240Vac
Input Voltage Range176Vac-300Vac from 50% to the 100% of loading, 110Vac-300Vac up to 50% load
Nominal Frequency50/60 Hz (selectable)
Number of phases1Ph+N
Input power factor0,99
Output
Transfer time0 ms (On-Line)
Number of phases1Ph+N
Nominal voltage208Vac/220Vac/230Vac/240Vac
Static voltage Regulation at %100 linear load (On-Line and battery mode)±2%
Voltage THD at rated linear load<3% (linear load), <5% (non-linear load)
Crest factor3:1
Frequency50/60 Hz (selectable)
Inverter waveformSinewave
Efficiency94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Frequency stability±0,1 Hz
Overload capability (Battery mode)110% for 3 minutes, 130% for 30 seconds, >130% for 10 seconds
Overload capability (On-line mode)110% for 30 minutes, 130% for 5 minutes, >130% for 10 seconds
Battery
TypeLead acid, sealed, maintenance free
Installed inside-
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
