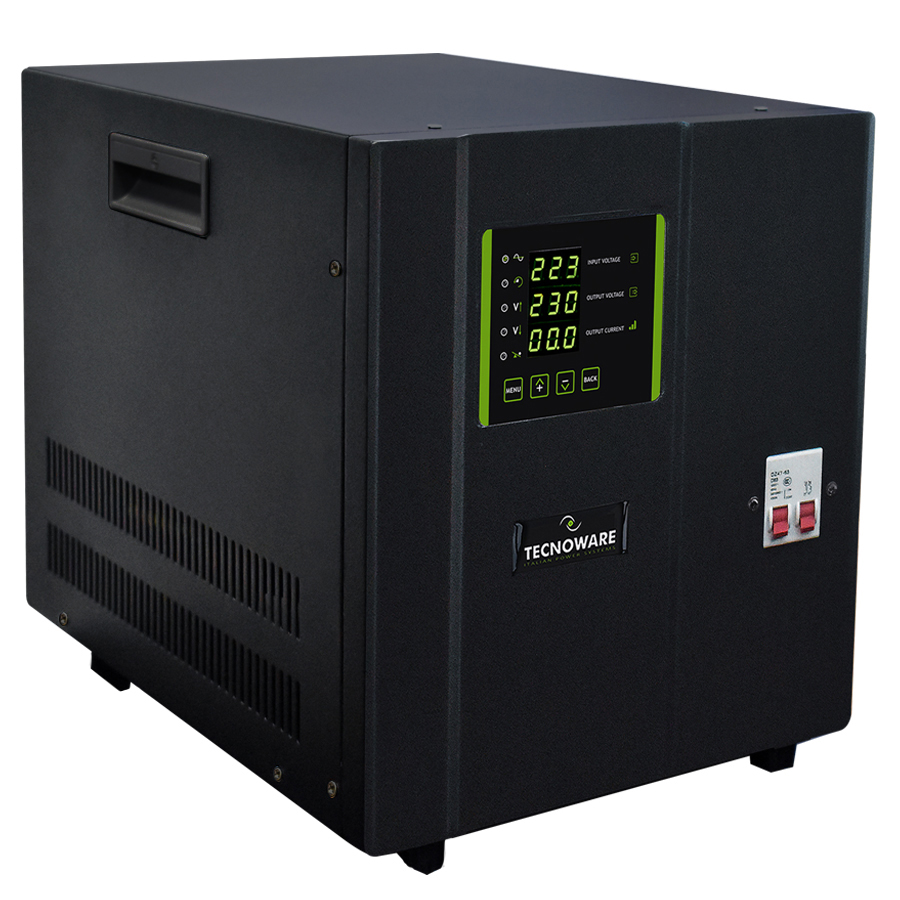

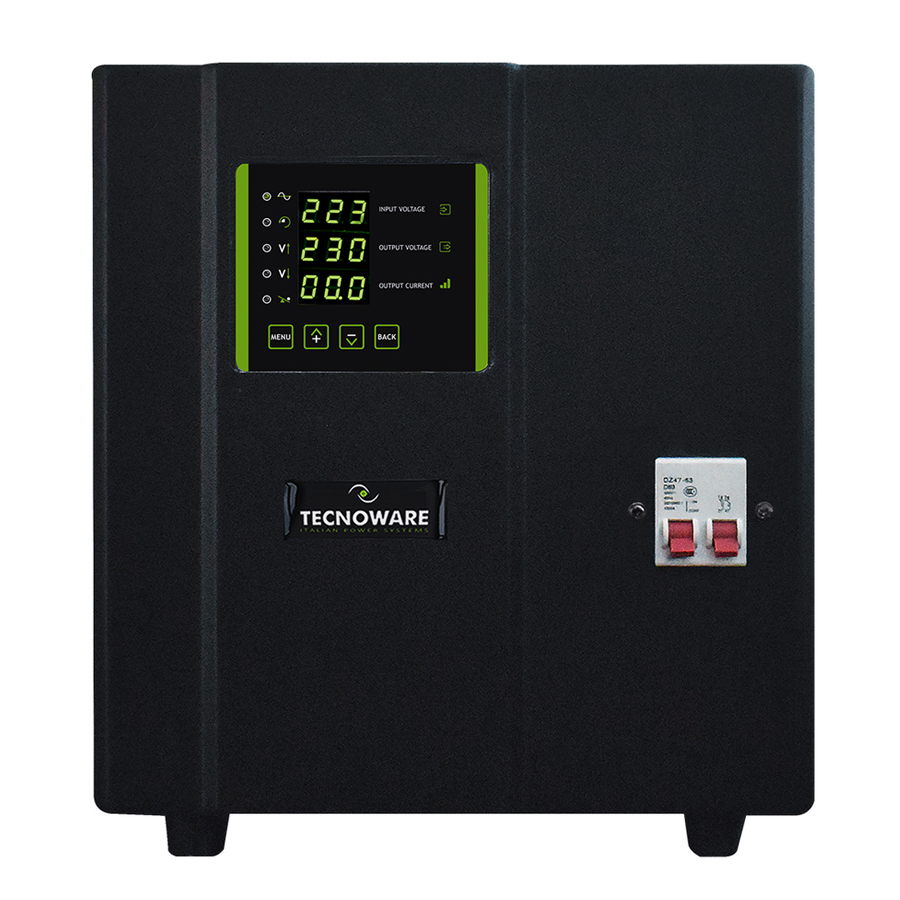

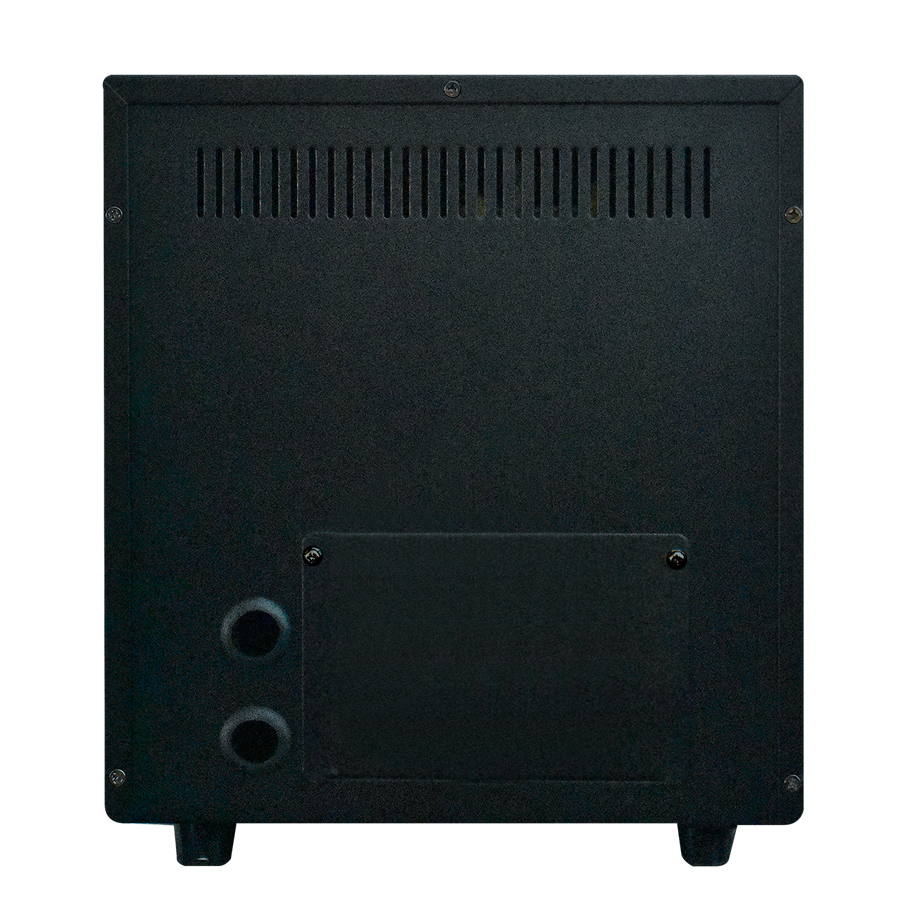

BIDIRECTIONAL SINGLE-PHASE STABILIZER 7.5KVA SERVO-ASSISTED WITH MICROPROCESSOR

Bidirectional Stabilizer, single-phase version, power of 7.5KVA, with high stabilization accuracy (±3% output) in sinusoidal waveform, insensitivity to load and power factor. It does not introduce harmonic distortions, weight 24 kg, dimensions 30x34x40 cm.

Reviews

There are no reviews yet.

Be the first to review “BIDIRECTIONAL SINGLE-PHASE STABILIZER 7.5KVA SERVO-ASSISTED WITH MICROPROCESSOR”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFSTESM7K5MBD
Nominal Power7.5 KVA
Active Power6 KW
Power Factor0,8
TechnologyBidirectional servo-assisted with Microprocessor Electronic Control
Dimension (with packing) WxHxD36x50x50 cm
Weight24 Kg
Dimension WxHxD30x34x40 cm
Input
Nominal Voltage220/230/240Vac (selectable)
Input Voltage Range160Vac-270Vac
Nominal Frequency50/60 Hz
Number of phases1Ph+N
Output
Number of phases1Ph+N
Nominal voltage220/230/240Vac (selectable)
Frequency stability± 3 %
Voltage regulation12 mSec/Volt
Performance>97%
Load variationFrom 0% to 100%
Overload1,5
Nominal frequency50/60 Hz
Battery
Environmental specification
Working TemperatureFrom 0 to 55 °C
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE
