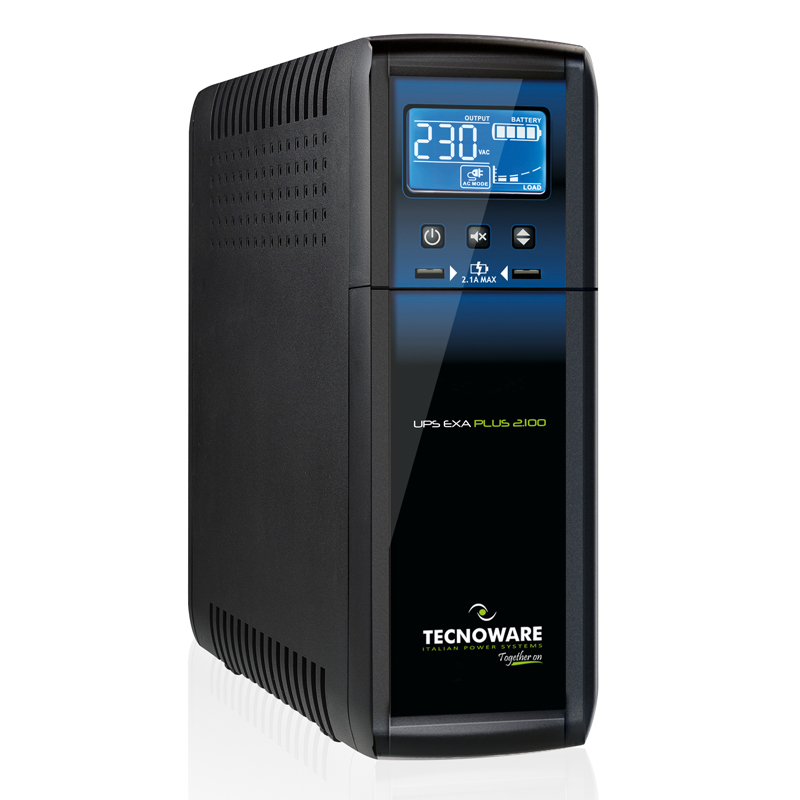

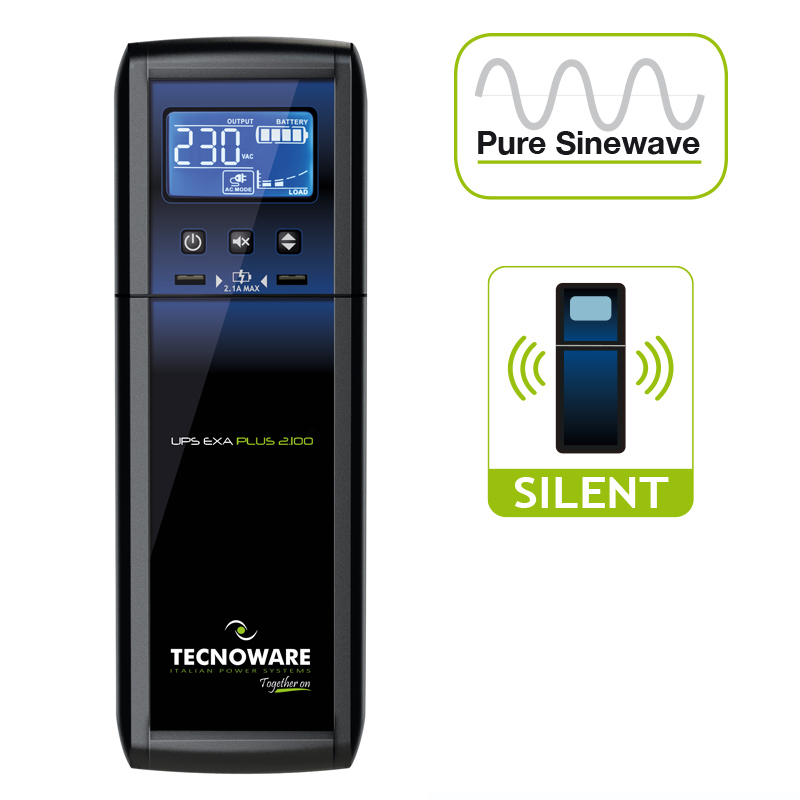

UPS EXA PLUS 1100VA-1600VA-2100VA-3000VA-4500VA

Uninterruptible Power Supply  EXA PLUS 1100 VA -1600VA-2100VA-3000VA-4500VA, Designed for Game PC and Console, Extremely Silent, Autonomy up to 30 min, USB and Tecnomanager Software for WIN/MAC

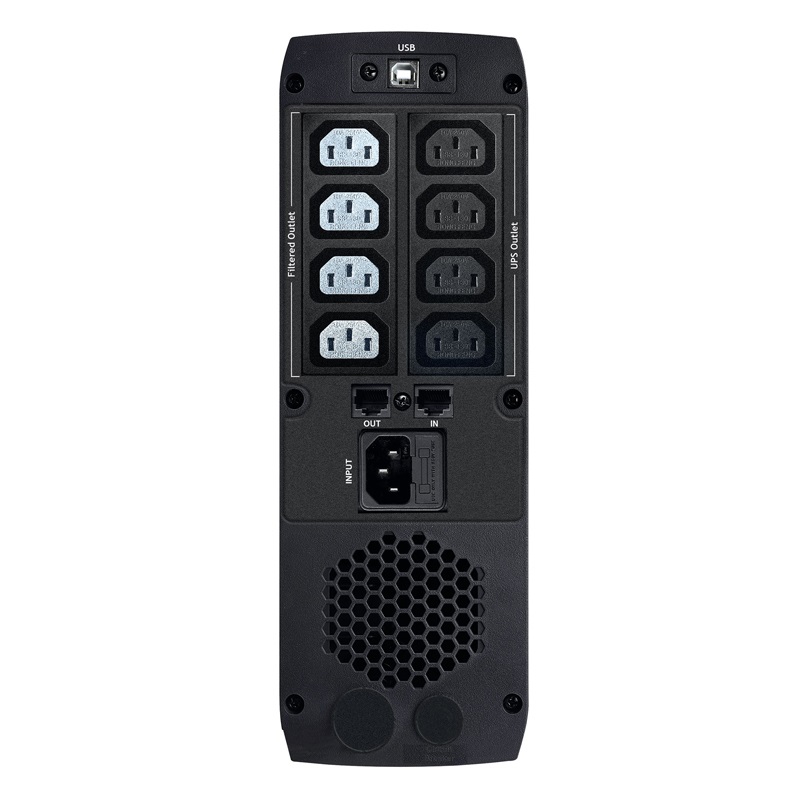

Uninterruptible power supply UPS EXA PLUS 1100 VA -1600VA-2100VA-3000VA-4500VA ; sine wave line interactive plus technology; dimensions 9.9x28x41 cm, weight 13.1 kg, autonomy up to 30 minutes, designed to protect fireplaces, pellet stoves, PC games, consoles, servers and workstations and all equipment equipped with an active PFC power supply. 8x IEC-type output sockets, 2x IEC cables supplied, 1x IEC input plug (where to insert the cable of the protected PC); equipped with a multifunctional LCD display for viewing the status of the power line and USB interface for UPS UPS control and on/off programming using the free Tecnomanager Win/Mac software; RJ11/45 in-out filter for the protection of the Telephone/Lan line from electromagnetic interference

Reviews

There are no reviews yet.

Be the first to review “UPS EXA PLUS 1100VA-1600VA-2100VA-3000VA-4500VA”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeUPS EXA PLUS 1100VA-1600VA-2100VA-3000VA-4500VA
TechnologyLine Interactive with stabilizer
CoolingFan cooling (only in battery mode, charging mode or boost/buck AVR mode)
Audible Noise< 12 dBA 1m (line mode) < 45 dBA 1m (when the fan is working)
Dimension (UPS) WxHxD9,9x28x41 cm
Dimension (with packing) WxHxD18x37,6x49,5 cm
Weight13,1 Kg
Max Computer Power2.100VA/1.470W
LCD DisplayUPS status, input/output voltage, input/output frequency, load level, battery capacity, warning or fault error code. (the display backlighting is normally o?, switch on only after a key is pressed)
Input
Nominal VoltageSingle-phase 230Vac
Input Voltage Range+20%/-25%
Nominal Frequency50/60 Hz (automatic selection)
Number of phases1Ph+N
Input frequency range+/-5%
Output
Overload Capability< 130%
Transfer time2 ms (typical)
Number of phases1Ph+N
Nominal voltageSingle-phase 230Vac
Frequency50/60 Hz (automatic selection)
Inverter waveformSinewave
Voltage regulation (Line mode)AVR (Automatic Voltage Regulation)
Voltage regulation (Battery mode)+/-5%
Battery
TypeLead acid, sealed, maintenance free
Backup time (Typical)10-30 min
Environmental specification
Working TemperatureFrom 0 to 55 °C (retcomended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
