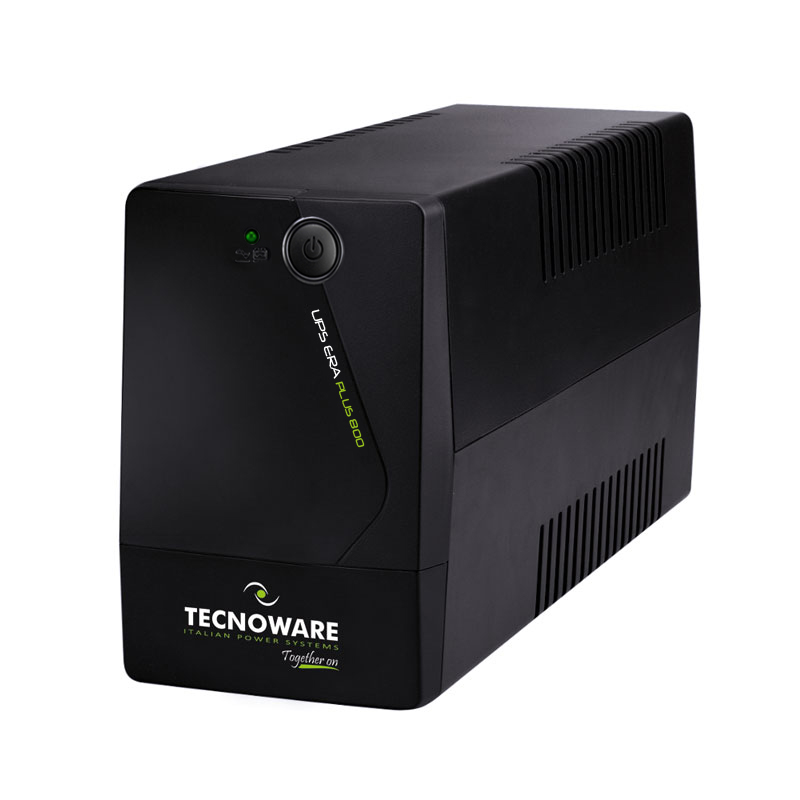

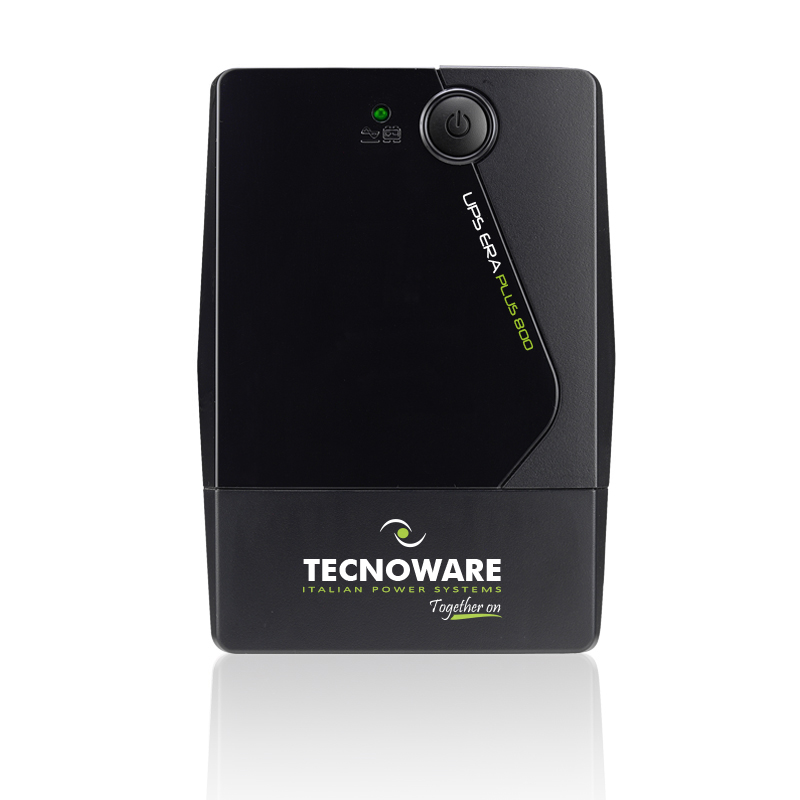

UPS ERA PLUS 600-800-1200-1600-2100-2600 SCHUKO TOGETHER ON

UPS ERA PLUS 600-800-1200-1600-2100-2600 Together ON, Schuko outputs, Backup time up to 15 min with 1 PC or 40 min with Modem Router. AVR stabilization.

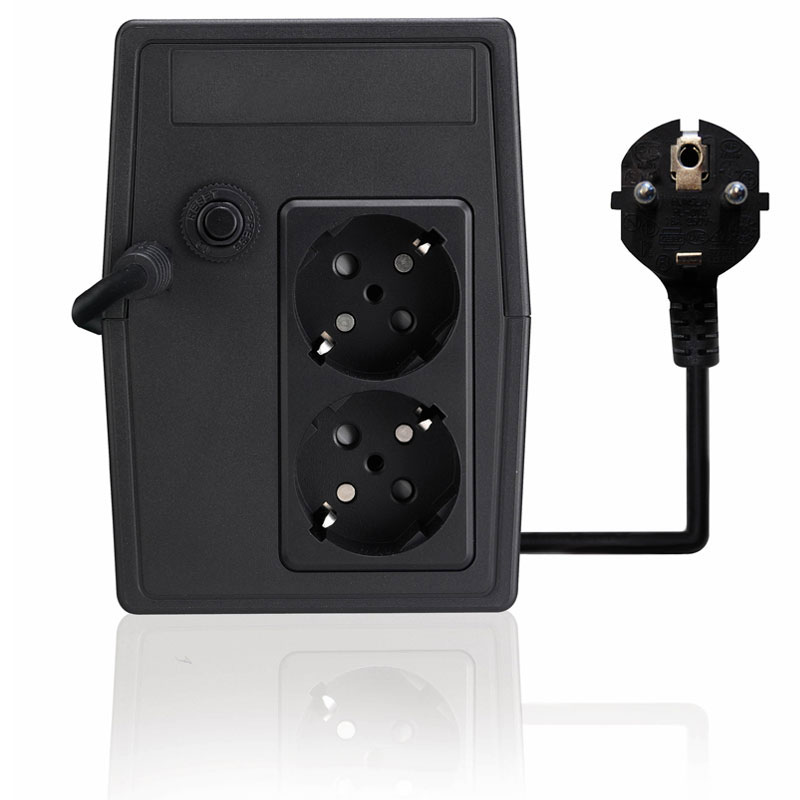

UPS ERA PLUS 800-1200-1600-2100-2600, 12V 7Ah battery, It has 1 SCHUKO input fixed cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 3.0 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.

Reviews

There are no reviews yet.

Be the first to review “UPS ERA PLUS 600-800-1200-1600-2100-2600 SCHUKO TOGETHER ON”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCERAPL802SCH
TechnologyLine Interactive with stabilizer
CoolingNatural
Audible Noise< 40 dBA to 1 m
Dimension (UPS) WxHxD10,1x14,2x27,9 cm
Dimension (with packing) WxHxD18x22x34 cm
Weight3,9 Kg
Max Computer Power800VA/560W
Input
Nominal VoltageSingle-phase 230Vac
Input Voltage Range+20%/-25%
Nominal Frequency50/60 Hz (automatic selection)
Number of phases1Ph+N
Input frequency range+/-5%
Output
Number of phases1Ph+N
Nominal voltageSingle-phase 230Vac
Frequency50/60 Hz (automatic selection)
Inverter waveformModified sinewave
Voltage regulation (Line mode)AVR (Automatic Voltage Regulation)
Voltage regulation (Battery mode)+/-5%
Battery
TypeLead acid, sealed, maintenance free
Backup time (Typical)10-40 min
Environmental specification
Working TemperatureFrom 0 to 55 °C (reccomended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
