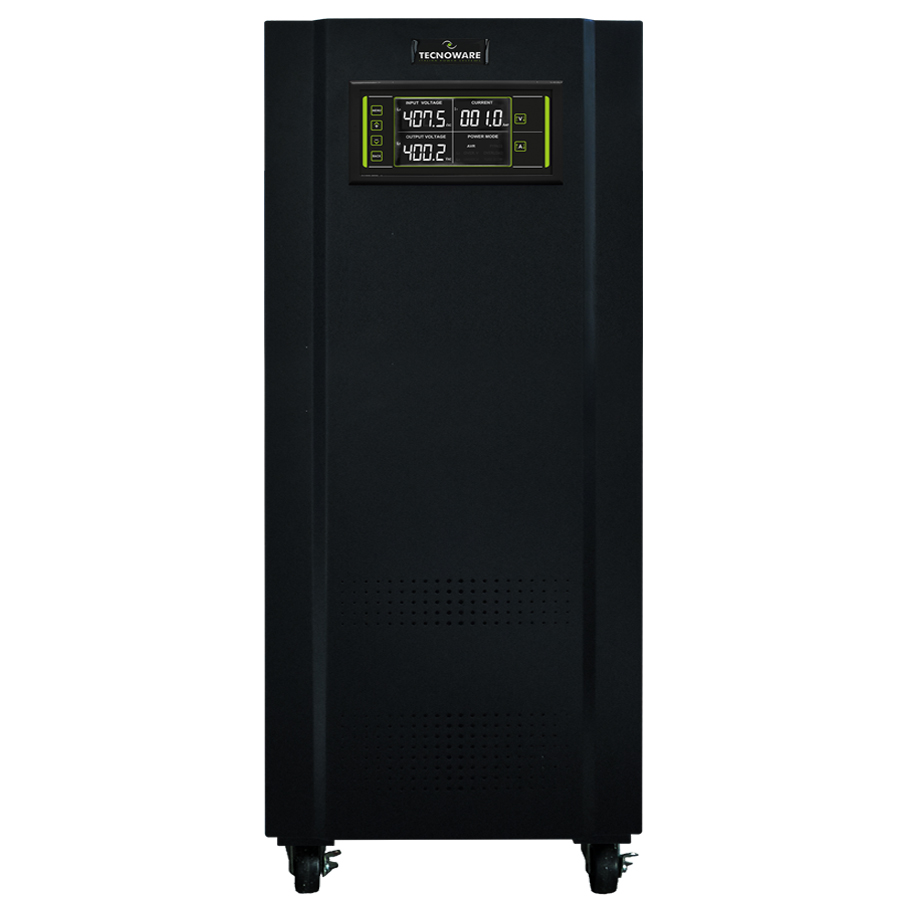

ELECTRONICALLY CONTROLLED THREE-PHASE 9KVA STABILIZER WITH MICROPROCESSOR

Stabilizer, three-phase version, 9KVA power, with high stabilization precision (±1% output) in sine wave form, insensitivity to load and power factor. It does not introduce harmonic distortions, weight 80 kg, dimensions 34x77x40 cm.

Reviews

There are no reviews yet.

Be the first to review “ELECTRONICALLY CONTROLLED THREE-PHASE 9KVA STABILIZER WITH MICROPROCESSOR”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFSTESM9KT
Nominal Power9 KVA
Active Power7.2 KW
Power Factor0,8
TechnologyServo-assisted with Microprocessor Electronic Control
Dimension (UPS) WxHxD34x77x40 cm
Dimension (with packing) WxHxD39x92x48 cm
Weight80 KG
Input
Nominal Voltage380/400/415Vac (selectable)
Input Voltage Range260Vac-470Vac
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Output
Number of phases3Ph+N
Nominal voltage380/400/415Vac (selectable)
Voltage stability±1%
Voltage regulation12 mSec/Volt
Performance>97%
Load variationFrom 0% to 100%
Overload1,5
Nominal frequency50/60 Hz
Battery
Environmental specification
Working TemperatureFrom 0 to 55 °C
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE
