BATTERY BOX FOR EVO DSP RACK MOUNT TM-TT 10-20 KVA

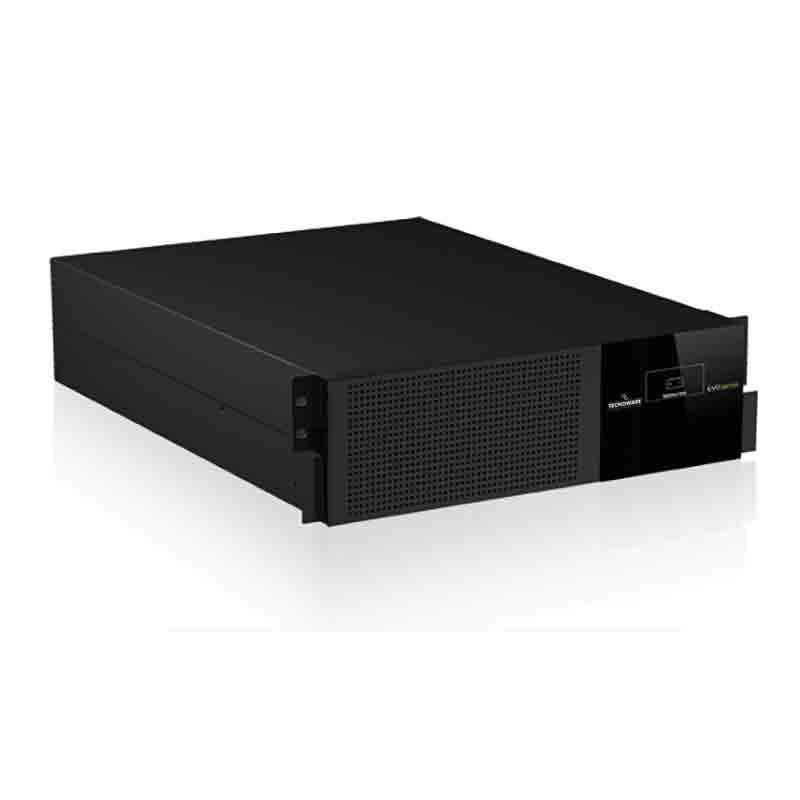

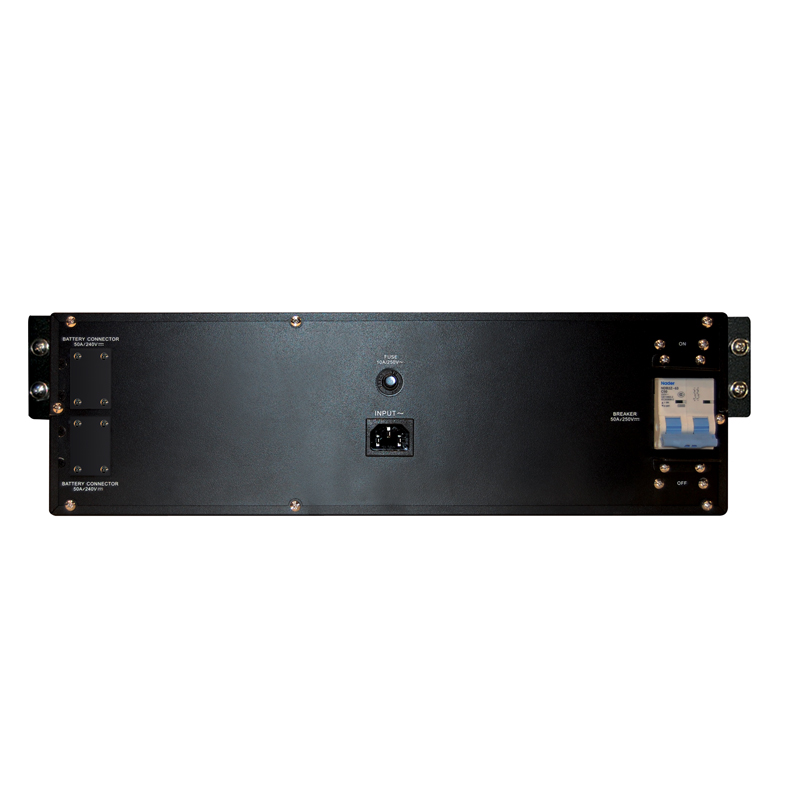

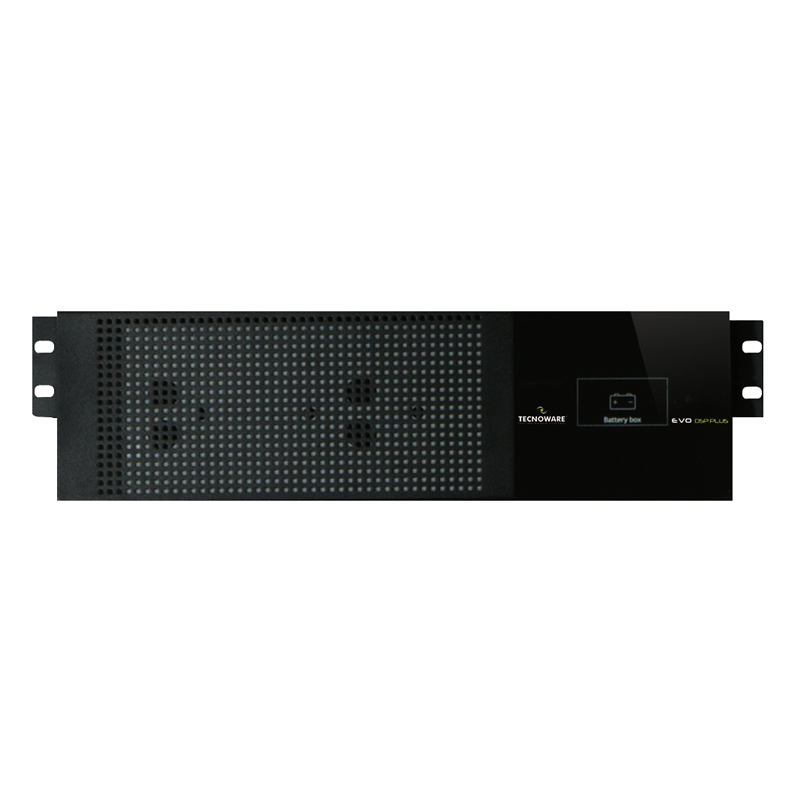

Battery Box for EVO DSP RACK MOUNT TM-TT 10 -20 KVA Without Batteries,ready to install 20 12Vdc 7.2-9-11Ah Batteries, Dimensions (lxhxp) 43.5x13x66.8 cm, Weight 13 Kg, Internal charger, (for the correct installation use support shelf, not supplied)

EVO DSP TT RACK MOUNT 20.0 UPS – Power 20KVA PF0,9. DSP On Line Technology (VFI), Efficiency 94%, 400Vac input, 400Vac 50/60Hz output, dimensions 43.8×26.6×66.8 cm (6U), weight 48 Kg, autonomy via additional battery boxes (necessary). Multifunction graphic LCD display, static bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on/off programming using the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Reviews

There are no reviews yet.

Be the first to review “BATTERY BOX FOR EVO DSP RACK MOUNT TM-TT 10-20 KVA”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
Aucune donnée technique est disponible.
Input
Output
Battery
Environmental specification
