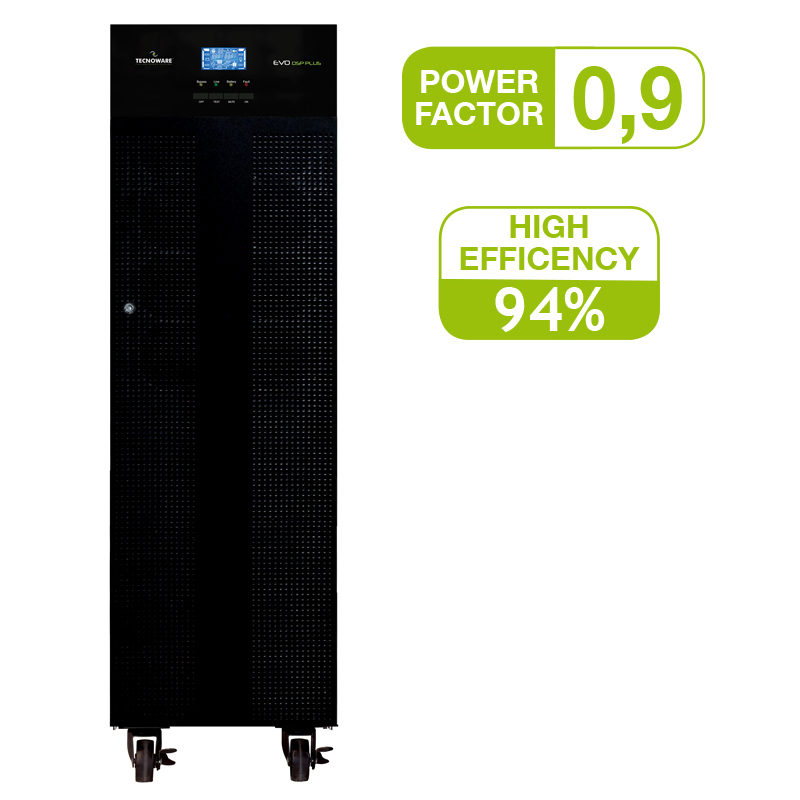

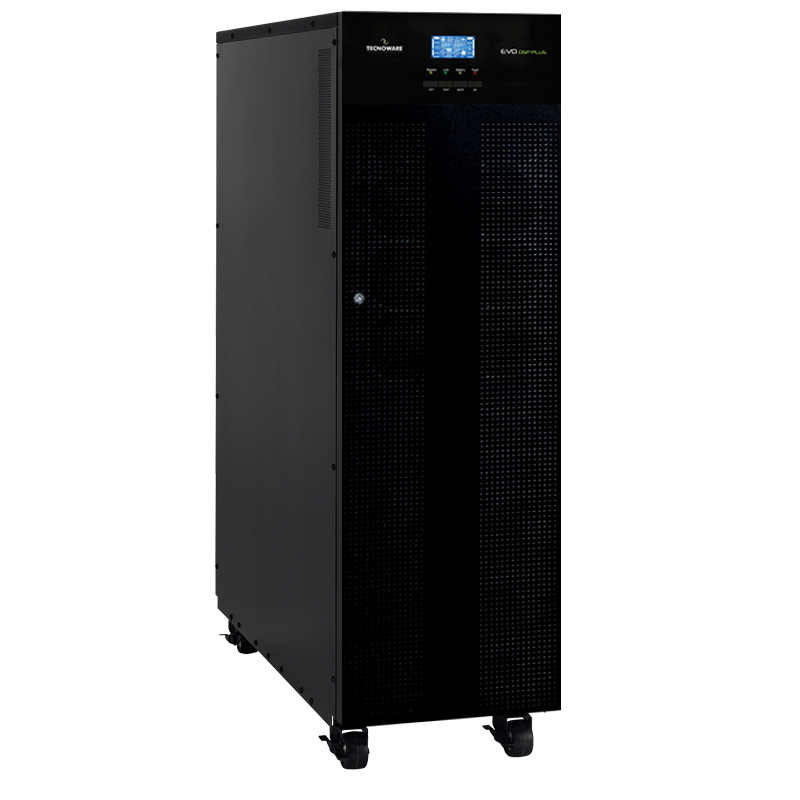

UPS EVO DSP PLUS 80.0 TT – PF 0,9

EVO DSP PLUS TT 80.0 PF 0,9 – Power 80KVA. On Line Technology (VFI) DSP, 94% Efficiency, Three-phase Input / Output 400Vac, 50 / 60Hz, dimensions 36x101x79 cm, weight 113 Kg, does not include batteries,ready to install additional battery boxes.

UPS EVO DSP PLUS TT 80.0 – Power 80 KVA PF 0.9. On Line Technology (VFI) DSP, 94% Efficiency, Input / Output 400Vac, 50 / 60Hz, dimensions 36x101x79 cm, weight 113 Kg, does not include batteries, extension bacup time through additional battery boxes. Multifunction graphic LCD display, static and manual bypass, EPO contact for emergency shutdown, USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP, Dry Contact or MODBUS card (optional).

Additional information
CodeFGCEVDP80TT
Nominal Power80 KVA
Active Power72 KW
Power Factor0,9
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD36x101x79cm
Dimension (with packing) WxHxD49x124,4x92,8cm
Weight113 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)<4%
Output
Number of phases3Ph+N
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency94%, calculated in double conversion mode at 100% load according to standard 62040-3
Voltage regulation (Line mode)110% per 10 minutes, 130% per 1 minute, >130% per 1 second
Voltage regulation (Battery mode)110% per 30 seconds, 130% per 10 seconds, >130% per 1 second
Frequency stability±0,1 Hz
Voltage THD<2% (linear load) - <5% (non-linear load)
Voltage regulation±1%
Nominal frequency360Vac/380Vac/400Vac/415Vac (F-N: 208Vac/220Vac/230Vac/240Vac)
Battery
TypeLead acid, sealed, maintenance free
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)

Reviews

There are no reviews yet.

Be the first to review “UPS EVO DSP PLUS 80.0 TT – PF 0,9”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
CodeFGCEVDP80TT
Nominal Power80 KVA
Active Power72 KW
Power Factor0,9
TechnologyOn-Line Double Conversion transformerless (VFI-SS-111)
CoolingFan cooling
Dimension (UPS) WxHxD36x101x79cm
Dimension (with packing) WxHxD49x124,4x92,8cm
Weight113 Kg
Input
Nominal Voltage360Vac/380Vac/400Vac/415Vac
Input Voltage Range176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
Nominal Frequency50/60 Hz
Number of phases3Ph+N
Input power factor0,99
Input voltage range (Ph-N)208Vac/220Vac/230Vac/240Vac
Input current harmonic distortion (THDi)<4%
Output
Number of phases3Ph+N
Crest factor3:1
Frequency50/60 Hz
Inverter waveformSinewave
Efficiency94%, calculated in double conversion mode at 100% load according to standard 62040-3
Voltage regulation (Line mode)110% per 10 minutes, 130% per 1 minute, >130% per 1 second
Voltage regulation (Battery mode)110% per 30 seconds, 130% per 10 seconds, >130% per 1 second
Frequency stability±0,1 Hz
Voltage THD<2% (linear load) - <5% (non-linear load)
Voltage regulation±1%
Nominal frequency360Vac/380Vac/400Vac/415Vac (F-N: 208Vac/220Vac/230Vac/240Vac)
Battery
TypeLead acid, sealed, maintenance free
Environmental specification
Working TemperatureFrom 0 to 55 °C (recommended from 20 to 25 °C)
Humidity< 95% without condensation
Maximum Altitude3000 m
IP ProtectionIP20
CertificationsCE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
