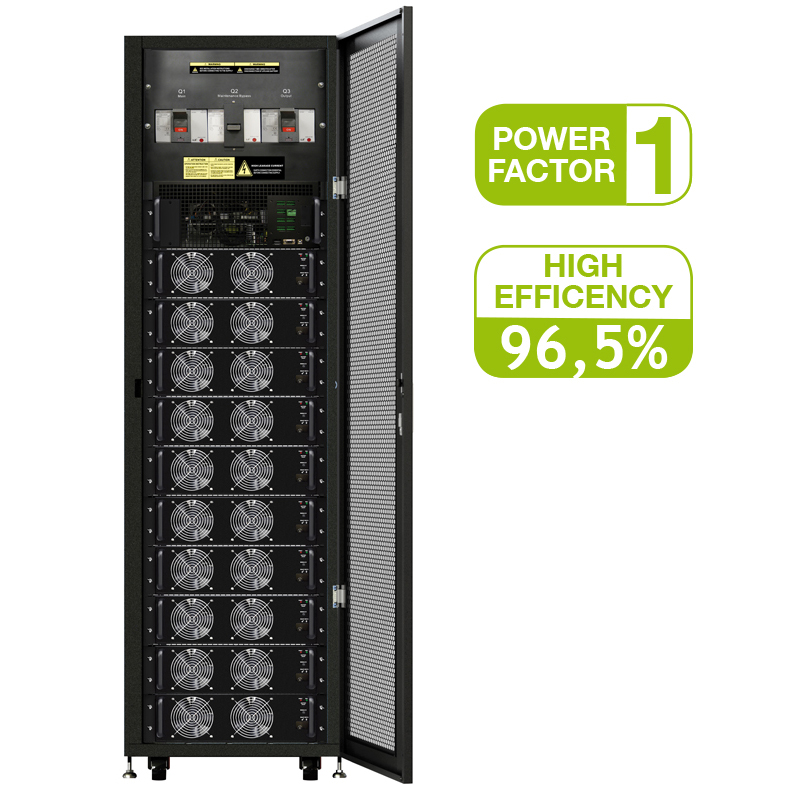

CABINET EVO DSP PLUS MODULAR. 42U, STS 200KVA UP TO 10 UPS MODULES 20KVA

UPS cabinet EVO DSP PLUS MODULAR 42U able to contain up to 10 UPS modules of 20KVA, maximum installable power 200KVA, Dimensions 60×110 cm with height 201cm weight 270Kg.
Téléchargez la fiche technique

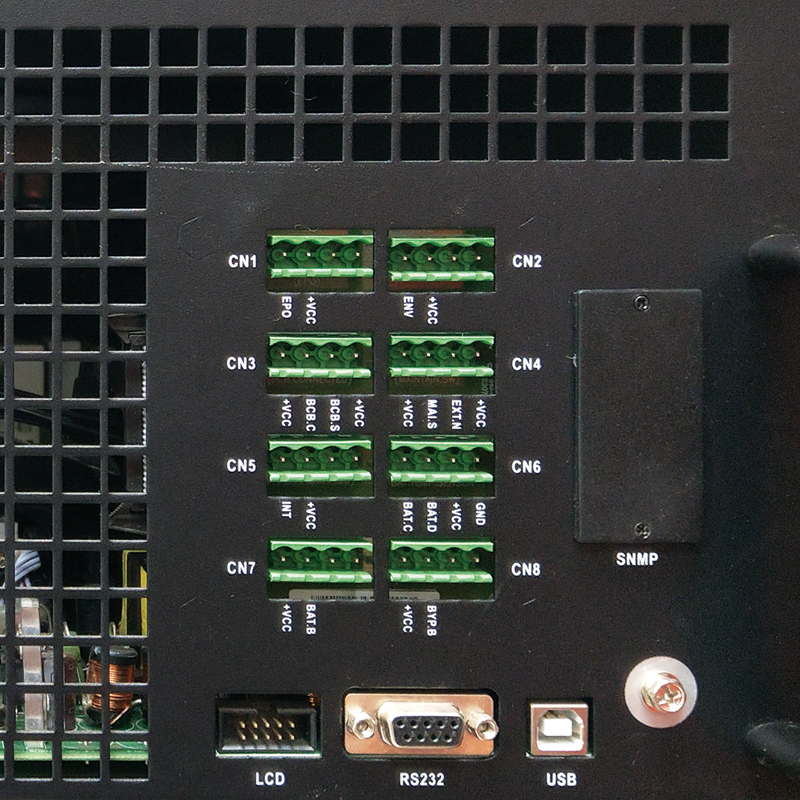

Cabinet UPS EVO DSP MODULAR HE 42U able to contain up to 10 UPS modules 20KVA TT (to be ordered separately) equipped with 200KVA static bypass (STS), manual bypass switch, connections and disconnectors input / output, connection and disconnector for external batteries, 10 “LCD touch screen display, RS-232, USB, EPO communication ports and intelligent slot for the installation of the SNMP, RS485 or dry contact card. Closure with front grill door and rear door, removable side panels. Dimensions 60×110 cm with height 201cm weight 270Kg.

Reviews

There are no reviews yet.

Be the first to review “CABINET EVO DSP PLUS MODULAR. 42U, STS 200KVA UP TO 10 UPS MODULES 20KVA”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Fiche technique
Input
Output
Battery
Environmental specification
